- Frame - 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
- Fork - Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
- Wheel front - Bontrager Aeolus Pro 51, Tubeless Ready, 100x12 mm thru-axle
- Wheel rear - Bontrager Aeolus Pro 51, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru-axle
- Skewer front - Bontrager Switch thru axle, removable lever
- Skewer rear - Bontrager Switch thru-axle, removable lever
- Tyre - Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
- Max tyre size - 28c
- Shifter - Shimano Ultegra R8170, 12-speed
- Front derailleur - Shimano Ultegra R8150, braze-on, down swing
- Rear derailleur - Shimano Ultegra R8150

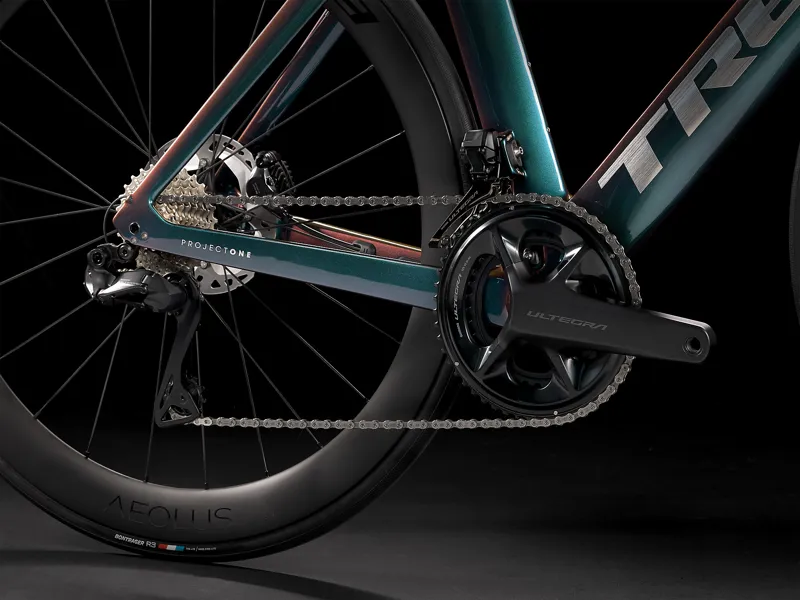

- Crank - Size: 47, Shimano Ultegra R8100, 52/36, 165 mm
 Size: 50/52, Shimano Ultegra R8100, 52/36, 170 mm
 Size: 54/56/58, Shimano Ultegra R8100, 52/36, 172.5 mm
 Size: 58/60/62, Shimano Ultegra R8100, 52/36, 175 mm

- Bottom bracket - Praxis, T47 threaded, internal bearing
- Cassette - Shimano Ultegra R8100, 11-30, 12-speed
- Chain - Shimano XT M8100, 12-speed
- Saddle - Size: 47/50/52, Bontrager Aeolus P2 Elite, 155 mm width
 Size: 54/56/62, Bontrager Aeolus Elite, austenite rails, 145 mm width

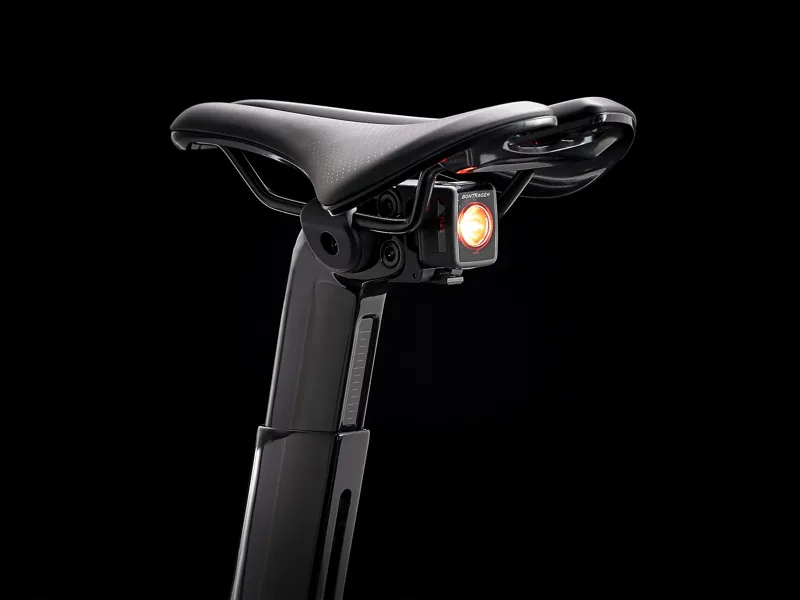

- Seatpost - Size: 47/50/52/54/56/62, Madone aero carbon internal seat mast cap, integrated light mount, 5 mm offset, short length
 Size: 58/60/62, Madone aero carbon internal seat mast cap, integrated light mount, 5 mm offset, tall length

- Handlebar - Size: 47, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 38 cm width
 Size: 50/52, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 40 cm width
 Size: 54/56/58, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 42 cm width
 Size: 60/62, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 44 cm width

- Handlebar tape - Bontrager Supertack Perf tape

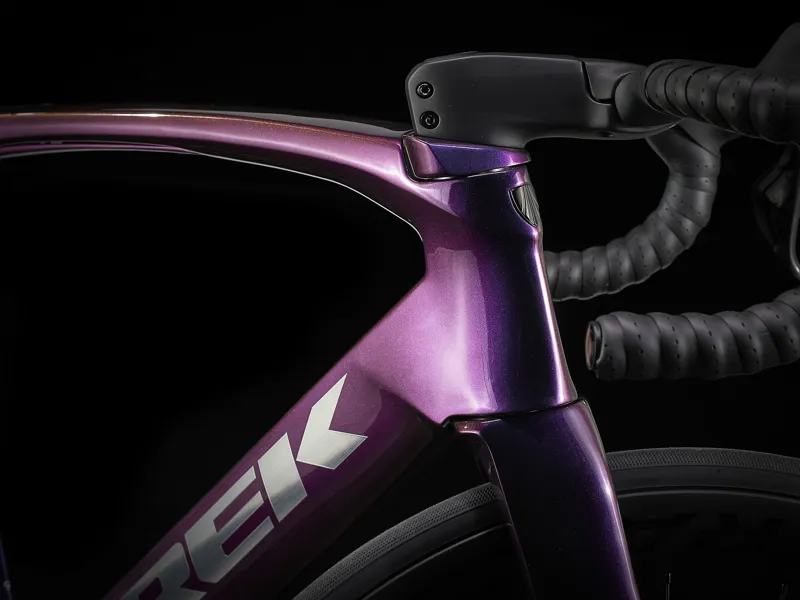

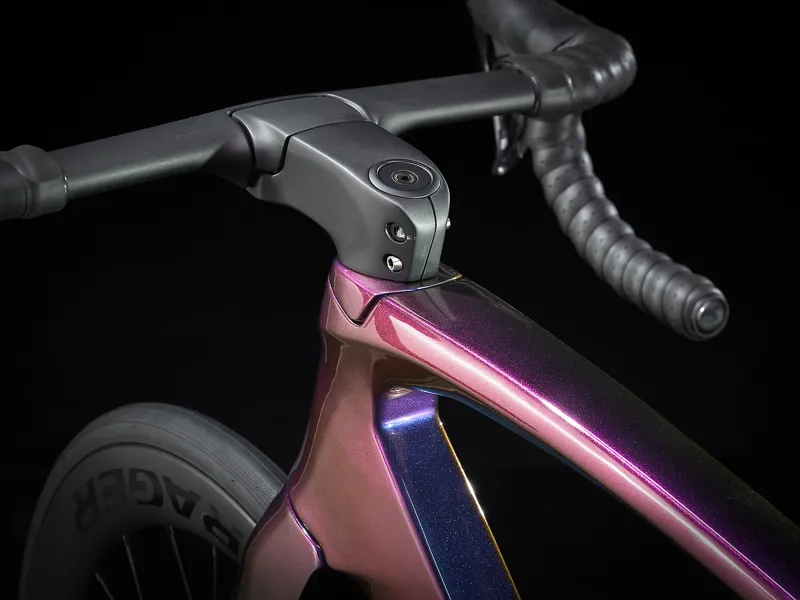

- Stem - Size: 47/50/52/54, Trek Madone aero, invisible cable routing, 7-degree, 90 mm length
 Size: 56/58, Trek Madone aero, invisible cable routing, 7-degree, 100 mm length
 Size: 60/62, Trek Madone aero, invisible cable routing, 7-degree, 110 mm length

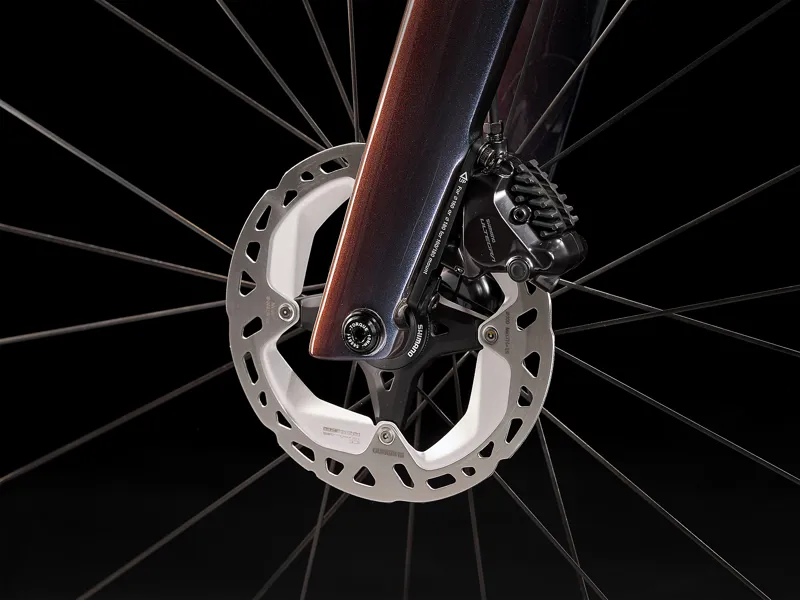

- Brake rotor - Shimano MT800, CenterLock, 160 mm
- Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
