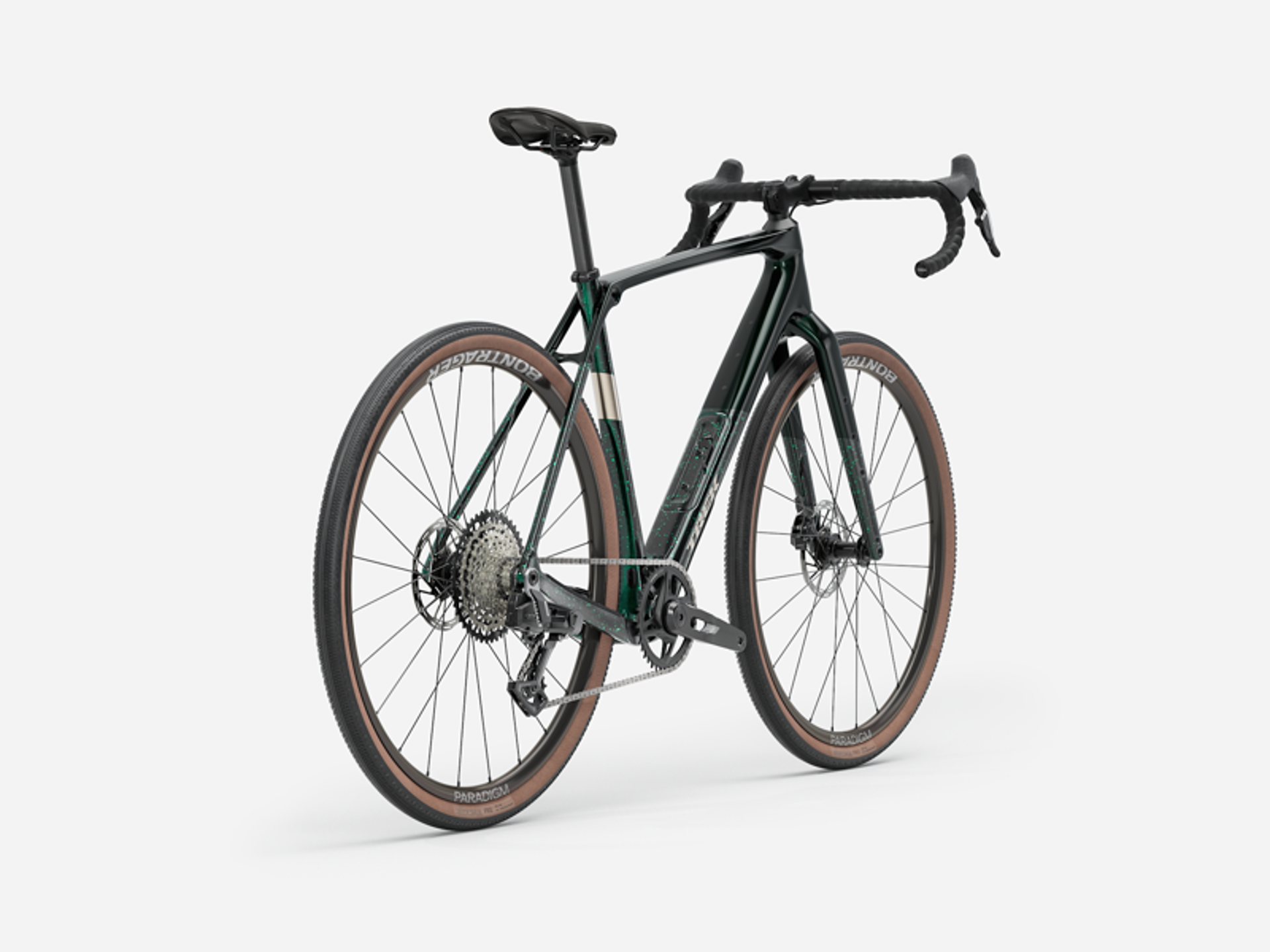

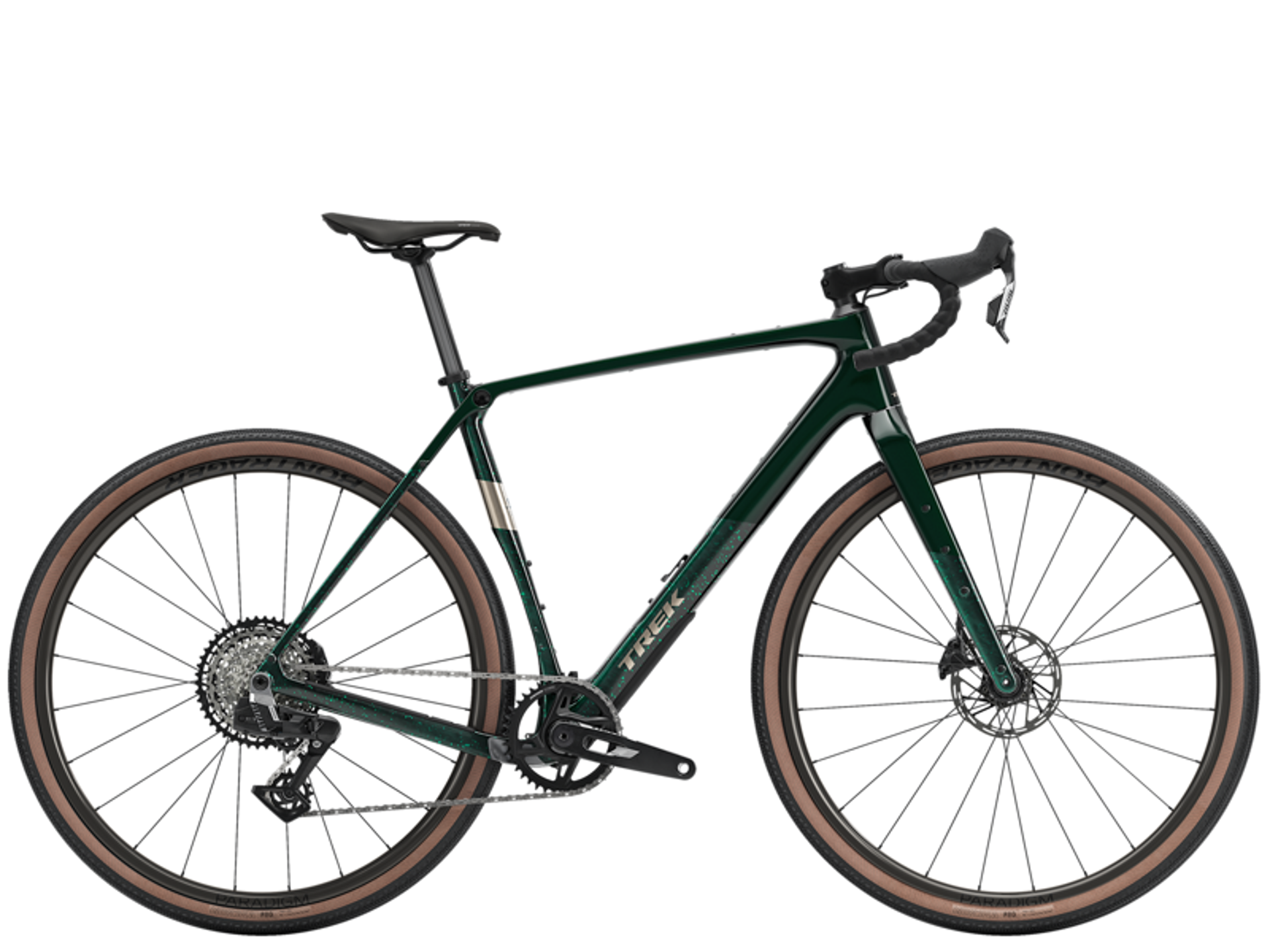

Trek Checkpoint SL 6 AXS Gravel Bike in Dark Green/Ivy Smoke Splatter

Season:2026

Brand:Trek

Code:55098GRN

Checkpoint SL 6 AXS Gen 3 is a carbon gravel bike ready for far-out adventures.

Its lightweight carbon frame is designed with comfort-focused Gravel Endurance geometry, clearance for beefy 50mm tires (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed frame technology helps soak up jarring road vibrations, so you can you float over chatter and potholes. It's ready to cut loose with a SRAM Rival AXS E1 wireless 13-speed groupset.

Features:

  • Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bikepacking trips, and more
  • Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher longer
  • You get crisp and clean shifts from the upgraded SRAM Rival AXS E1 wireless electronic 13-speed drivetrain
  • Clearance for 50mm tires (as measured) means you can add extra traction and cushion for rowdy gravel roads
  • You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, fenders, and Adventure Bags that were designed to perfectly fit Checkpoint
Technical Information
  • Frame
    500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
  • Fork

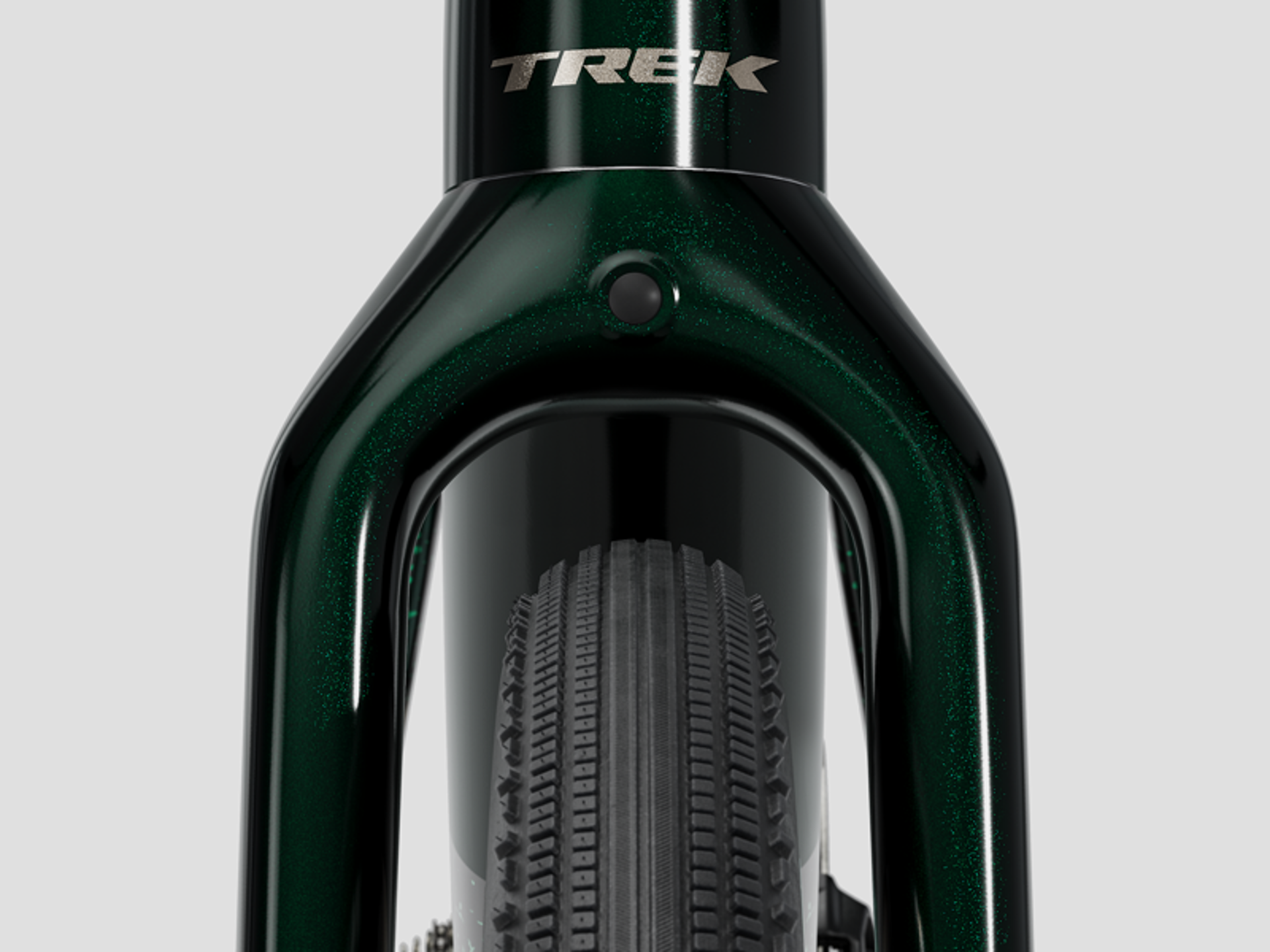

    Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
  • Max compatible fork travel
    40mm (XS: compatible with rigid fork only)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
  • Battery
    SRAM AXS battery pack (with charger)
  • Shifter
    SRAM Rival AXS, 13 speed

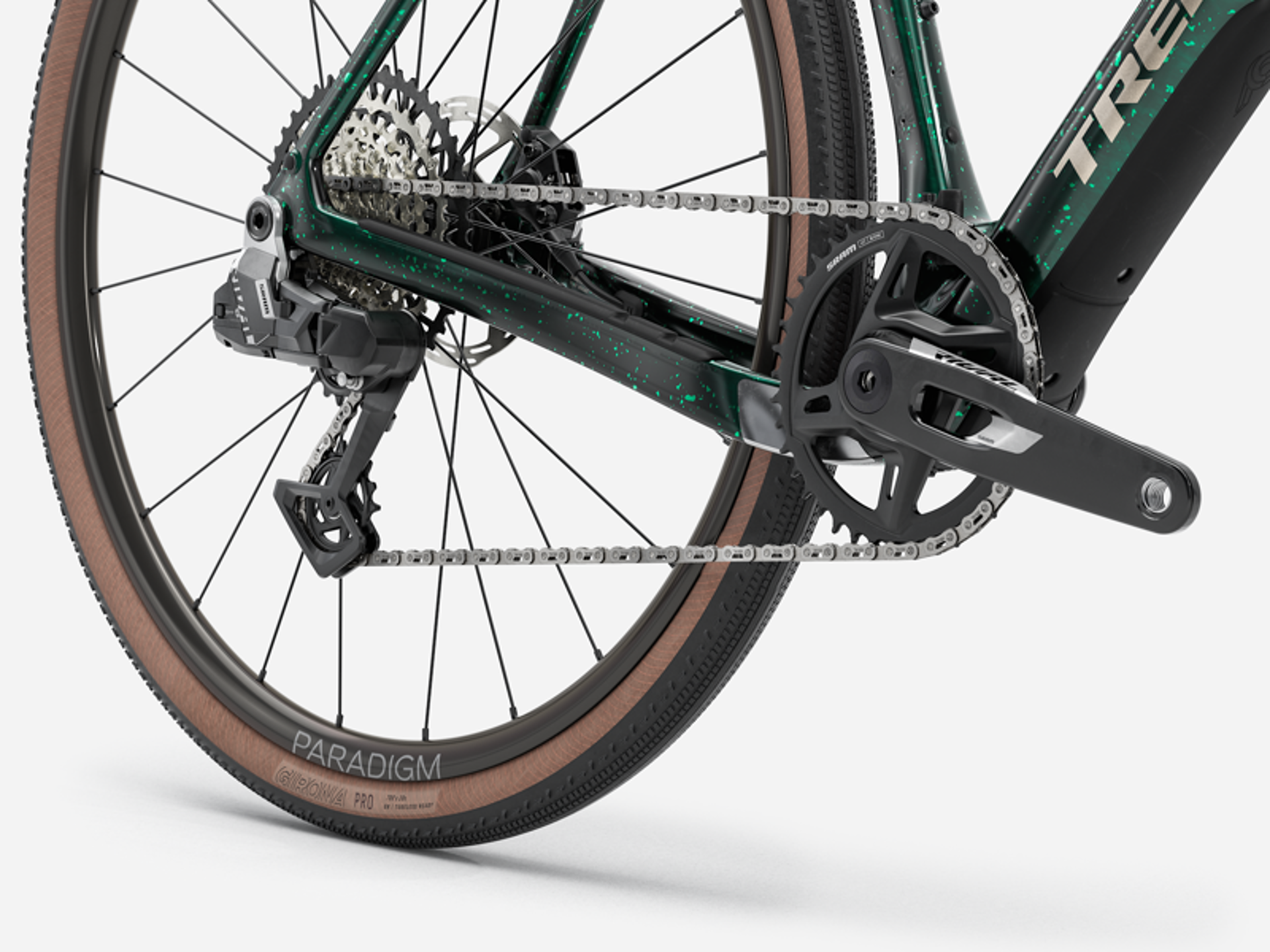

  • Rear derailleur
    SRAM Rival XPLR AXS, 46T max cog
  • Crank
    Size: XS, S: SRAM Rival XPLR, 40T, DUB Wide, 165mm length M: SRAM Rival XPLR, 40T, DUB Wide, 170mm length ML, L: SRAM Rival XPLR, 40T, DUB Wide, 172.5mm length XL: SRAM Rival XPLR, 40T, DUB Wide, 175mm length
  • Bottom bracket
    SRAM DUB Wide, T47 threaded, internal bearing
  • Cassette
    Sram Rival XPLR XG-1351, 10-46, 13 speed
  • Chain
    SRAM Rival E1, 12/13 speed
  • Max chainring size
    1x:44 2x: 46/30
  • Wheel front
    Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
  • Wheel rear
    Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle, removable lever
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tire
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
  • Tire part
    Bontrager TLR sealant, 6oz
  • Rim strip
    Bontrager TLR
  • Max tire size
    50mm without fenders, 42mm with fenders (as measured, see manual for details)
  • Saddle
    Verse Short Comp, steel rails, 145mm width
  • Seatpost
    Bontrager carbon, 27.2mm, 8mm offset, 330mm length

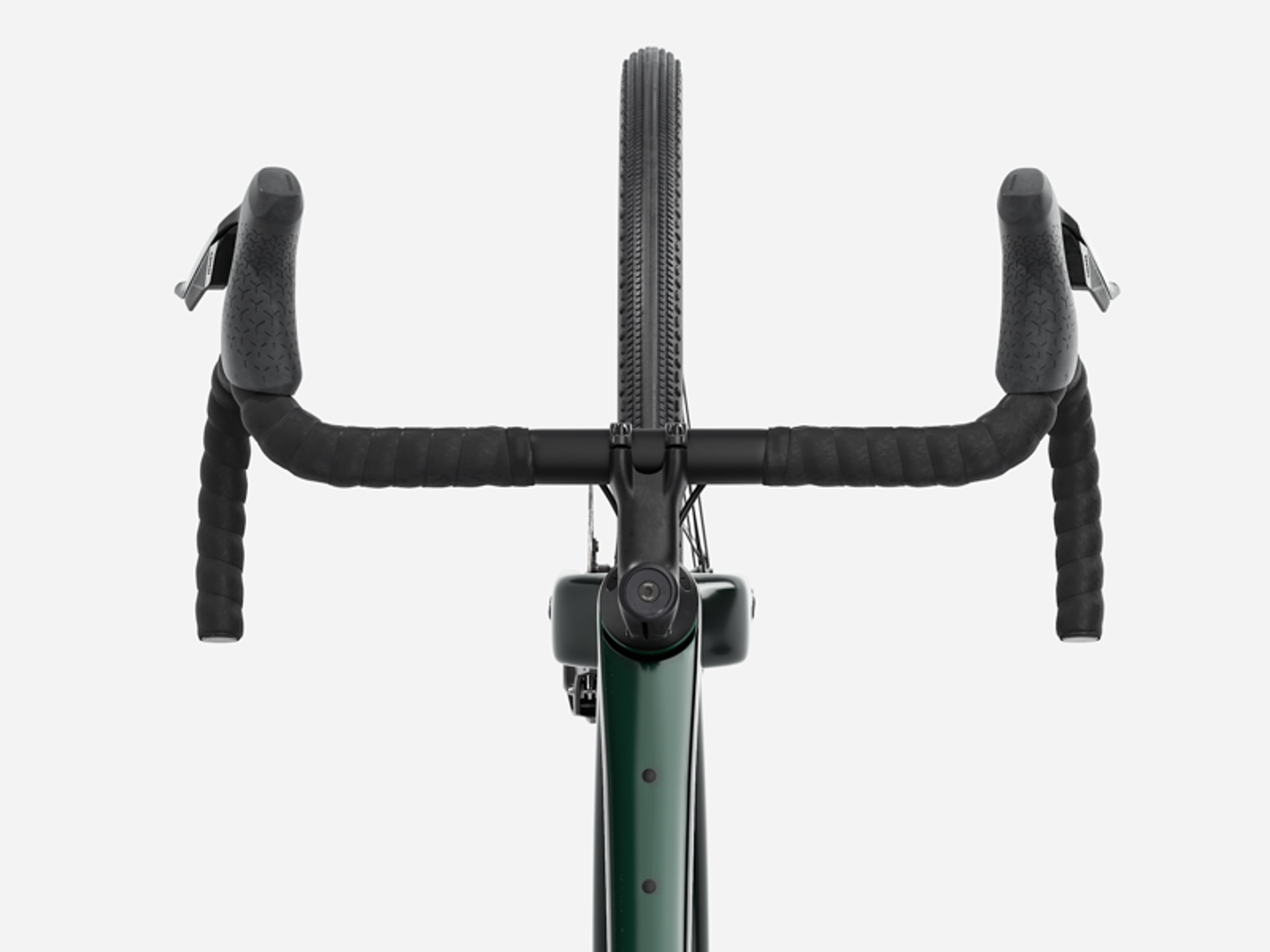

  • Handlebar
    Size: XS, S: Bontrager Elite Gravel, alloy, 40cm width M, ML: Bontrager Elite Gravel, alloy, 42cm width L: Bontrager Elite Gravel, alloy, 44cm width XL: Bontrager Elite Gravel, alloy, 46cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    XS: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length S, M: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length ML, L: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length XL: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
  • Brake rotor
    SRAM Paceline, rounded, centerlock, 160mm
  • Rotor size
    Max brake rotor sizes: 180mm front & rear
Sizing Information

We know that when you're looking for a bike, you want one you can depend on. We also understand that getting the right size means you'll be more comfortable and more confident when tackling hills, roads, and trails. That's why we've made it our mission to bring you the best bikes at the best prices—and to make sure that your bike fits you perfectly. In order to do this, we've created this sizing guide so that all of our customers can find the perfect fit for their needs. Of course, we're also always here if you need any help or advice. This is a guide and is a good starting point to finding the right bike for you and often is spot-on! However, if you need help, advice, or customisation - Pedalworks is here to help!

Contact us on 01582 478070 or send us a question on our contact us form.

ROAD BIKES

Framesize47cm50cm52cm54cm56cm58cm60cm62cm
Height152-158cm158-163cm163-168cm168-174cm174-180cm180-185cm185-190cm190-195cm
Inseam71-75cm74-77cm76-79cm78-82cm81-85cm84-87cm86-90cm89-92cm


MOUNTAIN BIKES

FramesizeXSSMM/LLXL2XL
Height137-155cm153-166.5cm161-172cm165.5-179cm177-188cm186-196cm195-203cm
Inseam64-75cm72-77cm76-79cm77-82cm83-85cm87-92cm92-95cm
