The Checkmate SLR 9 AXS is Trek's fastest and lightest gravel race bike, built to chase podiums down rowdy roads.
The Checkmate SLR 9 AXS is Trek's fastest and lightest gravel race bike, built to chase podiums down rowdy roads.
Trek

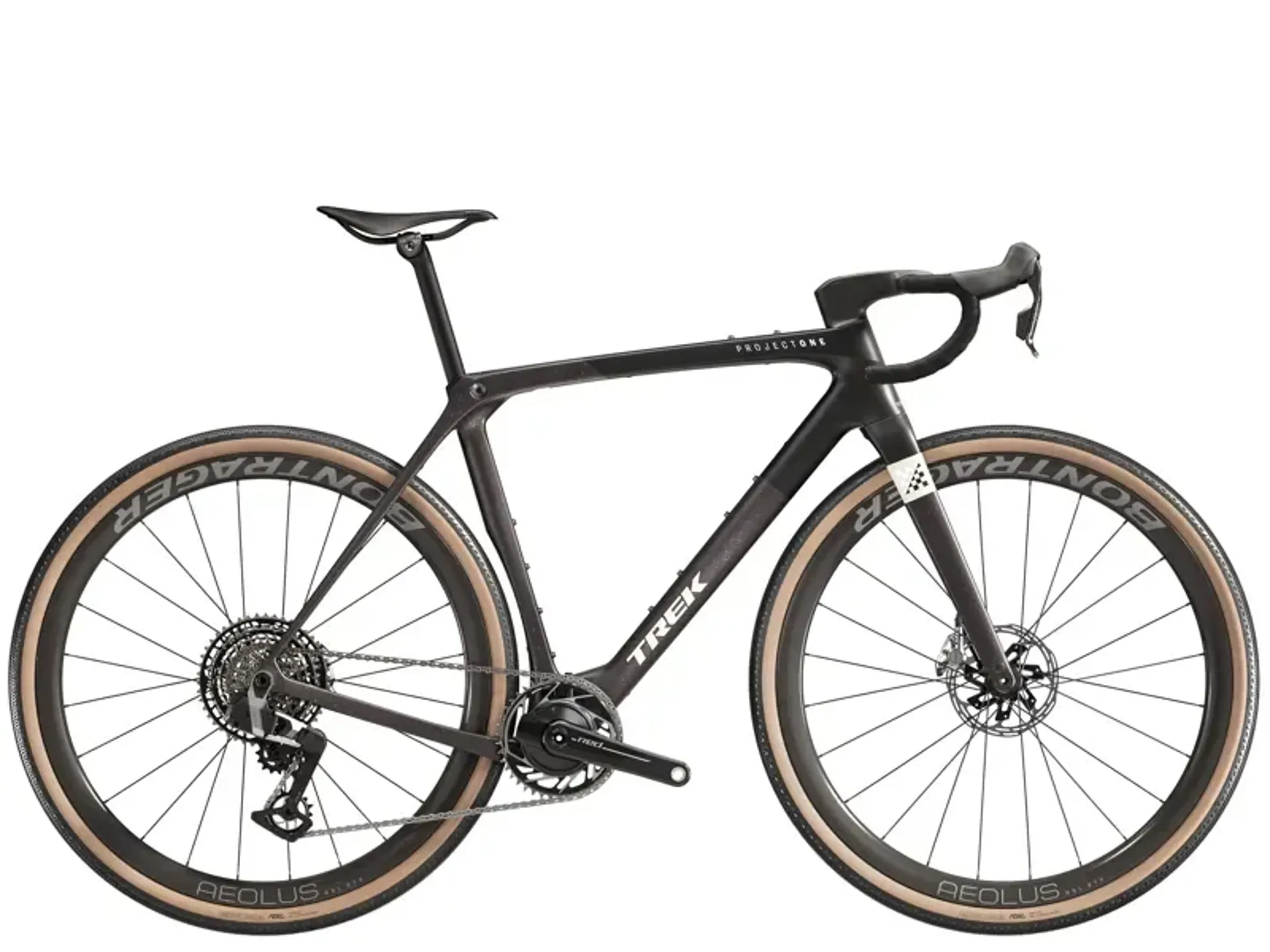

Trek Checkmate SLR 9 AXS Gravel Race Bike In Gloss Trek Black/Matte Carbon Smoke

£10,000.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns

We want you to be 100% happy with your shopping experience and we will provide a FREE exchange or refund on any item (within the UK), if returned withing 14 days of delivery.

Please insert your proof of purchase into the package and return it to us. If you wish to exchange an item for any reason, the quickest and simplest way to do this is to place a new order for the items that you want and to return the other items for a refund. Please note that it is your responsibility to pay for the return postage costs no postage costs are refundable. We cannot assume responsibility for returned items that are lost in the post. Your statutory rights are not affected.

  • All goods will be inspected upon return
  • Goods can be tried on for sizing but not worn for activity – Please do not wear items next to the skin when trying on for hygiene reasons, shorts MUST be tried on with clean underwear
  • Goods must be returned with all original packaging intact and tags attached within 14 days of purchase. Goods returned with incomplete or damaged packaging or missing or unattached tags may be refused or subject to a restocking fee
  • In the unlikely event that an item is returned to us in an unsuitable condition, we may have to send it back to you
  • Goods returned as unused/unworn, that have clearly been worn or washed may be refused
  • Goods returned without a returns form fully completed could delay the process of your return/exchange
  • If you pay for a delivery service, we will not refund the delivery cost unless the item is faulty or the incorrect item has been sent to you
  • We cannot accept out-of-date or opened nutrition products
  • Bikes may be subject to a restocking fee.

Bontrager 30 day InForm Guarantee

Bontrager offers a 30-day satisfaction guarantee on all Inform labeled Footwear, Clothing, and saddles to help you reach the ultimate fit.

  • Guarantee valid for in-store purchase only
  • You have 30 days from the date of purchase to return the items to the store
  • Make sure you return it with proof of purchase (receipt) and the original packaging (in good condition)
  • You will be given a credit towards a new Bontrager Product

CONTACT US

We are here to help! Please email us at enquiries@pedalworks.co.ukor call 01582 478070

Trek Checkmate SLR 9 AXS Gravel Race Bike In Gloss Trek Black/Matte Carbon Smoke

Season:2025

Brand:Trek

Code:46152BLK

The Checkmate SLR 9 AXS is Trek's fastest and lightest gravel race bike, built to chase podiums down rowdy roads.

It combines a lightweight aero design with IsoSpeed road-smoothing tech and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. To keep you at the front of the pack, it's equipped with top-tier parts, like carbon wheels and SRAM's latest ergonomic RED AXS XPLR wireless drivetrain.

It's right for you if...You're looking for a rig that's ready to race the most epic gravel adventures. You want a bike that delivers aerodynamics in a lightweight package, but not at the cost of your comfort. You know that the best parts are often what separates the top step from the rest, and you want carbon wheels and SRAM's new RED AXS wireless electronic drivetrain to give you the edge.

The tech you get - A lightweight and aerodynamic 800 Series OCLV Carbon frame with IsoSpeed comfort technology and plenty of mounts to carry race-day essentials. Bontrager Aeolus RSL 37V carbon wheels and a Trek Aero RSL carbon bar/stem that keep your ride light and nimble. Plus, SRAM's lightest and most ergonomic RED XPLR AXS drivetrain with wireless shifting that's built for rougher roads.

The final word - When race day matters, reach for Checkmate SLR 9 AXS. This speed-driven gravel bike is built to drop weight, boost comfort and deliver every upgrade you need to chase podiums. It combines new Gravel Race geometry with comfort-focused features, like IsoSpeed vibration-damping tech, to keep you at your prime from mile 10 to 200.

Features:
  • You're after a gravel bike that's made to soar straight off the starting line with Full System Foil aero tube shapes and an aero-yet-ergonomic one-piece bar/stem
  • Comfort isn't kicked to the side, thanks to road-smoothing IsoSpeed tech and clearance room for tyres up to 45 mm wide (as measured)
  • New Gravel Race geometry keeps you tucked out of the wind and poised for the attack without compromising the fit you need for comfort through long miles
  • Our lightest gravel bike ever, with premium 800 Series OCLV Carbon that helps you save energy by reducing road chatter
  • It comes equipped with plenty of mounts to add Adventure Bags and carry all your race-day essentials
Technical Information
  • Frame
    800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
  • Fork
    Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Wheel Front
    Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12mm thru axle
  • Wheel Rear
    Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12mm thru axle
  • Skewer Front
    Bontrager Switch chamfered thru axle, removable lever
  • Skewer Rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tyre
    Bontrager Girona RSL GR, Tubeless-Ready, aramid bead, 220 tpi, 700x38 mm
  • Tyre Part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim Strip
    Bontrager TLR
  • Max Tyre Size
    45 mm without mudguards
  • Battery
    SRAM eTap battery pack (with charger)
  • Shifter
    SRAM RED AXS E1
  • Rear Derailleur
    SRAM RED XPLR eTap AXS, 46T max cog
  • Crank (Size: XS, S)
    SRAM RED XPLR, power meter, 42T, DUB wide, 165 mm length
  • Crank (Size: M)
    SRAM RED XPLR, power meter, 42T, DUB wide, 170mm length
  • Crank (Size: ML, L)
    SRAM RED XPLR, power meter, 42T, DUB wide, 172.5 mm length
  • Crank (Size: XL)
    SRAM RED XPLR, power meter, 42T, DUB wide, 175 mm length
  • Bottom Bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM XG-1391, 10-46T, 13-speed
  • Chain
    SRAM RED E1, 12-speed
  • Max Chainring Size
    See service manual
  • Saddle (Size: XS, S)
    Aeolus RSL, carbon rails, 155 mm width
  • Saddle (Size: M, ML, L, XL)
    Aeolus RSL, carbon rails, 145 mm width
  • Seatpost (Size: XS, S, M)
    KVF aero carbon seat post, 5 mm offset, 280 mm length
  • Seatpost (Size: ML, L, XL)
    KVF aero carbon seat post, 5 mm offset, 320 mm length
  • Handlebar/Stem (Size: XS)
    Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 70 mm stem length
  • Handlebar/Stem (Size: S)
    Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 80 mm stem length
  • Handlebar/Stem (Size: M)
    Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
  • Handlebar/Stem (Size: ML, L)
    Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 100 mm stem length
  • Handlebar/Stem (Size: XL)
    Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
  • Brake Rotor
    SRAM Paceline X, rounded, CentreLock, 160 mm
  • Rotor Size
    Max brake rotor sizes: 180mm front and rear
  • Weight
    ML - 7.55 kg / 16.65 lbs (with TLR sealant, no tubes)
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Sizing Information

We know that when you're looking for a bike, you want one you can depend on. We also understand that getting the right size means you'll be more comfortable and more confident when tackling hills, roads, and trails. That's why we've made it our mission to bring you the best bikes at the best prices—and to make sure that your bike fits you perfectly. In order to do this, we've created this sizing guide so that all of our customers can find the perfect fit for their needs. Of course, we're also always here if you need any help or advice. This is a guide and is a good starting point to finding the right bike for you and often is spot-on! However, if you need help, advice, or customisation - Pedalworks is here to help!

Contact us on 01582 478070 or send us a question on our contact us form.

ROAD BIKES

Framesize47cm50cm52cm54cm56cm58cm60cm62cm
Height152-158cm158-163cm163-168cm168-174cm174-180cm180-185cm185-190cm190-195cm
Inseam71-75cm74-77cm76-79cm78-82cm81-85cm84-87cm86-90cm89-92cm


MOUNTAIN BIKES

FramesizeXSSMM/LLXL2XL
Height137-155cm153-166.5cm161-172cm165.5-179cm177-188cm186-196cm195-203cm
Inseam64-75cm72-77cm76-79cm77-82cm83-85cm87-92cm92-95cm
