Platform
SuperSix EVO
Frame
SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
Fork
SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Headset
Integrated, 1-1/8" - 1-1/4"

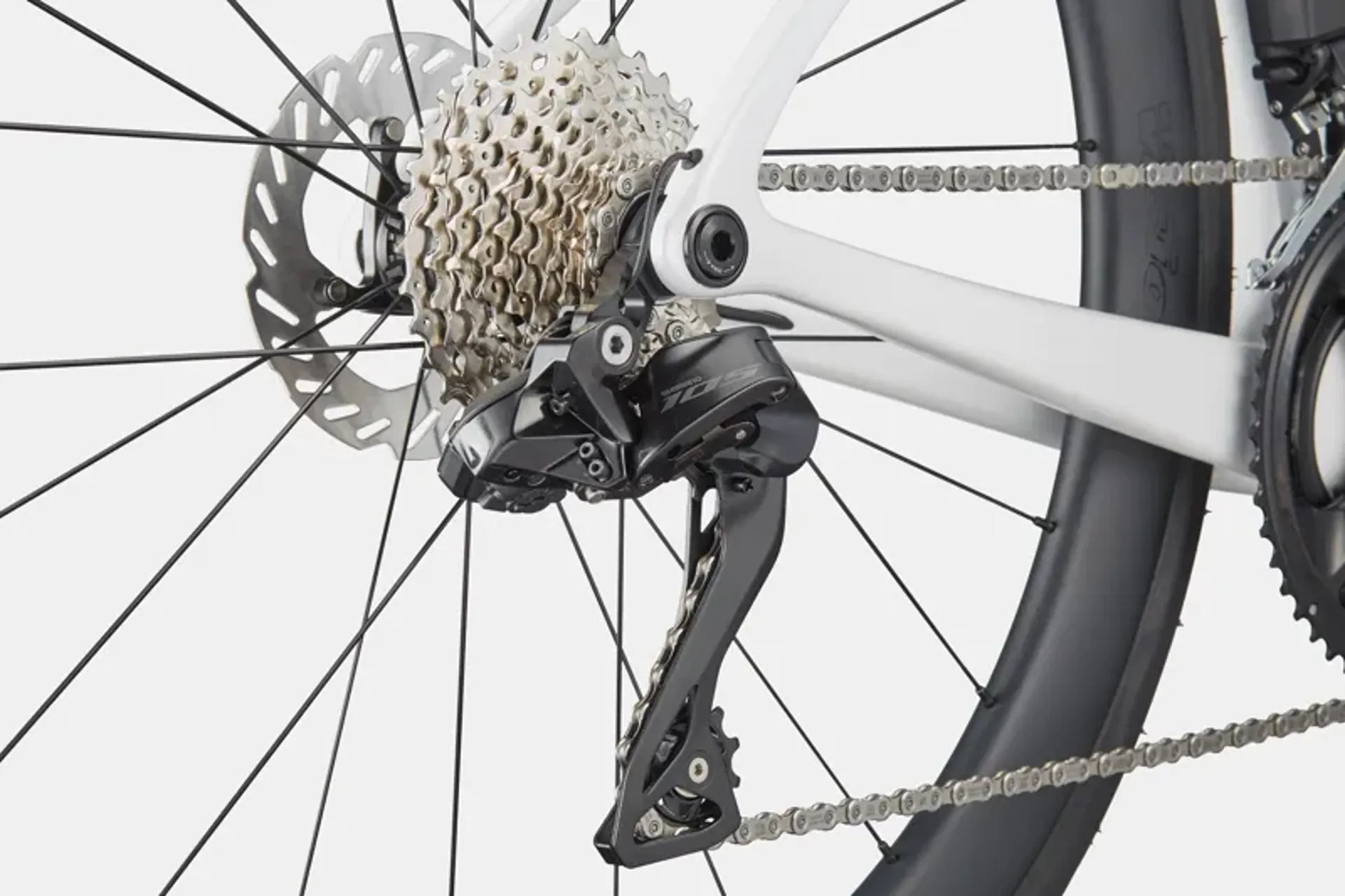

Rear Derailleur
Shimano 105 Di2 R7150, 12-speed
Front Derailleur
Shimano 105 Di2 R7170

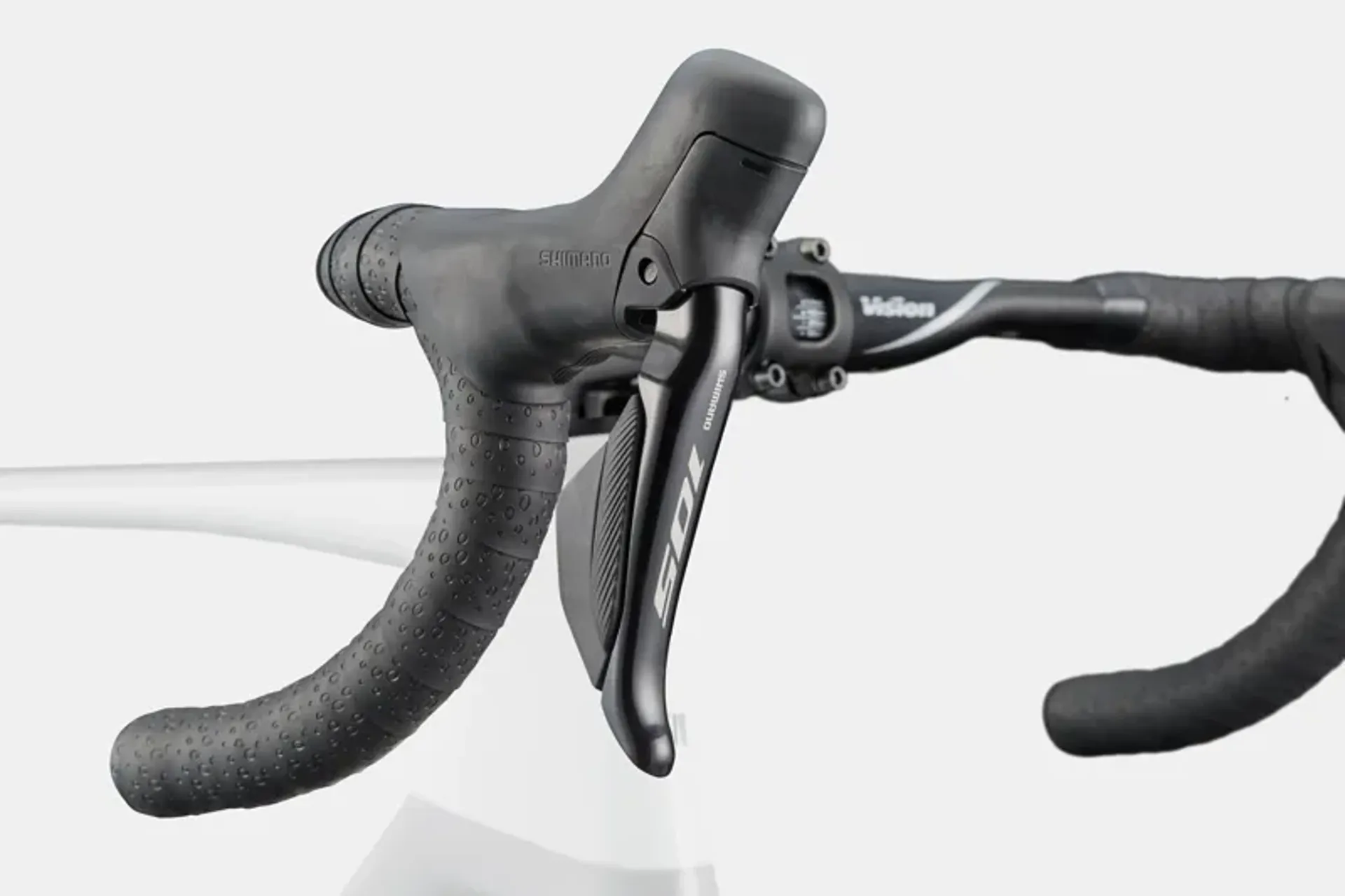

Shifters
Shimano 105 Di2 R7170, wireless, 2x12-speed
Chain
Shimano 105, 12-speed

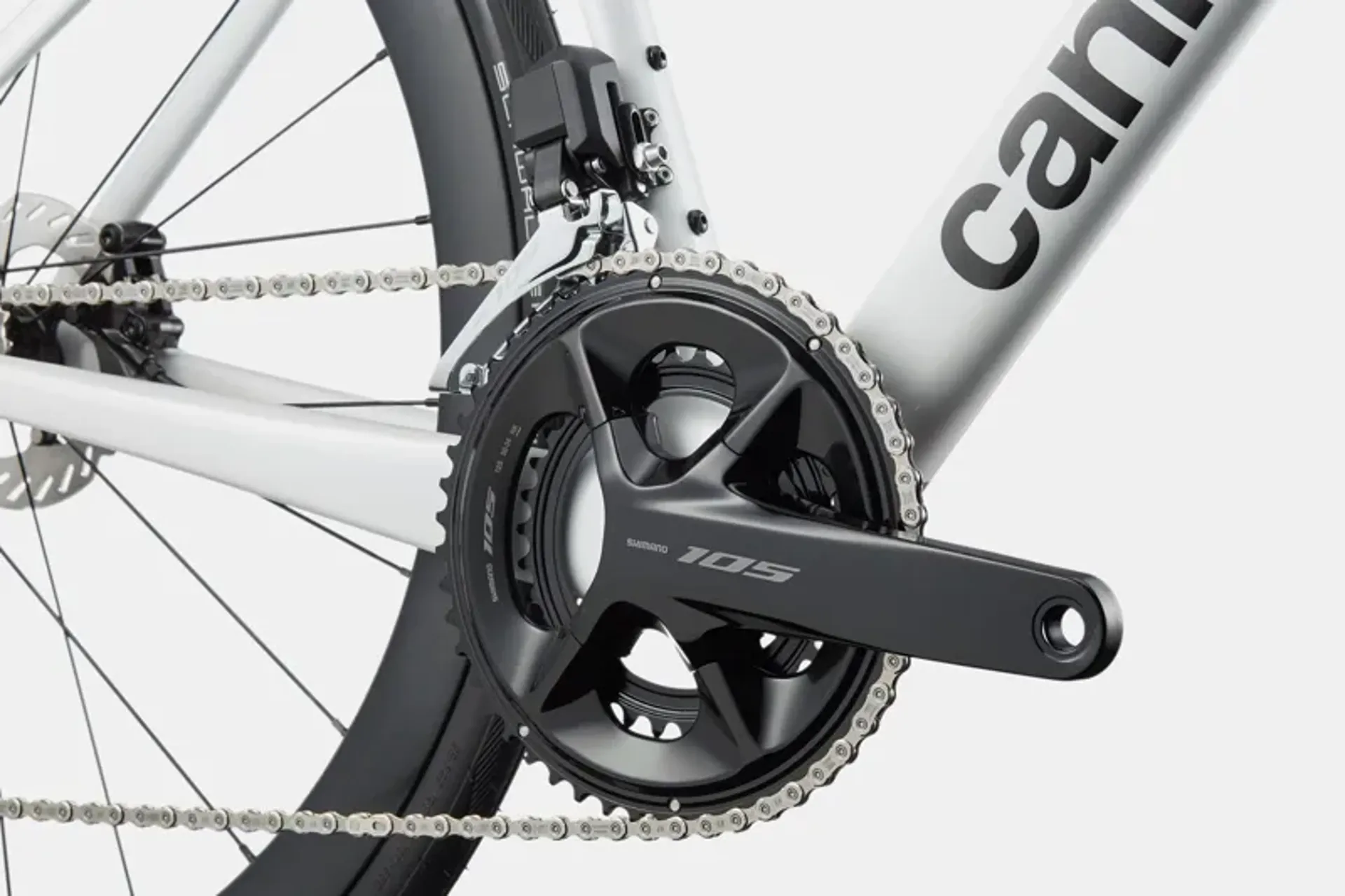

Crank
Shimano 105 7100, 50/34: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
Rear Cogs
Shimano 105 R7100, 11-34, 12-speed
Bottom Bracket
Shimano BB-RS500, BSA 68
Brakes
Shimano 105 R7170 hydraulic disc, 160/160mm CL700 rotors
Brake Levers
Shimano 105 Di2 R7170 hydraulic disc
Rims
Vision SC45 I23, carbon, 23mm inner width, 45mm depth
Spokes
2:1 aero bladed direct pull
Tire Size
28
Wheel Size
700c
Hubs
Vision, centerlock, (F) 12x100mm, (R) Vision, 12x142mm
Tires
Schwalbe One TLR, 700x28c, tubeless ready
Max Tire Clearance
32mm

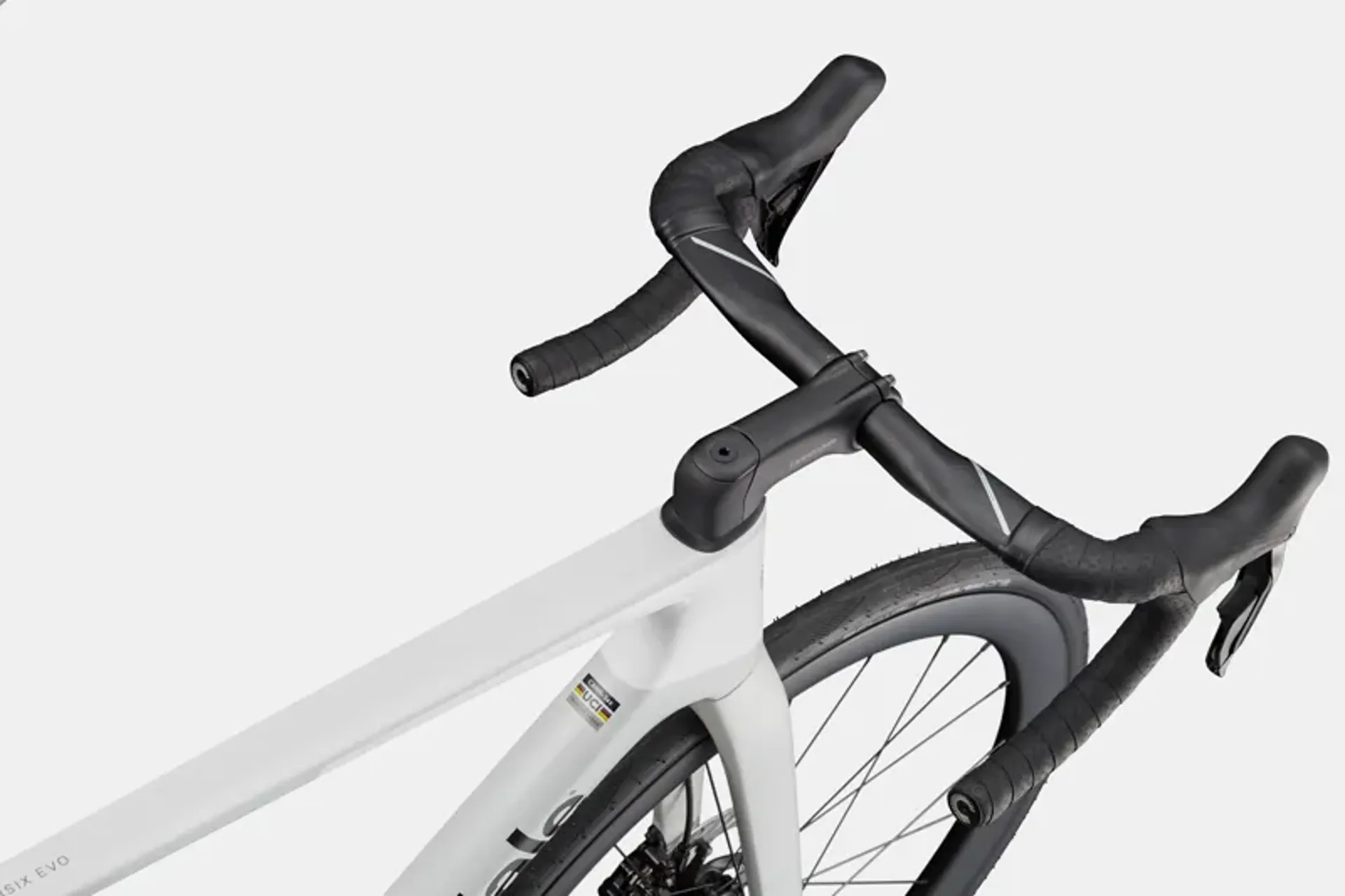

Handlebar
Vision Trimax Aero: 400mm (44-56), 420mm (58-61)
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Fizik Vento Antares R7, 140mm
Seatpost
Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
Extras
Tubeless valves, Shimano EC300 charging connector, Conceal Stem accessory/computer mount (Garmin/Wahoo)
