Trek's X-Caliber 9 is the top-end model in the X-Caliber family.
Trek's X-Caliber 9 is the top-end model in the X-Caliber family.
Trek

Trek X-Caliber 9 Mountain Bike

£1,275.00
Click & Collect for Free
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined

Hassle Free Returns

We want you to be 100% happy with your shopping experience and we will provide a FREE exchange or refund on any item (within the UK), whichever you prefer.

Please insert your proof of purchase into the package and return it to us. If you wish to exchange an item for any reason, the quickest and simplest way to do this is to place a new order for the items that you want and to return the other items for a refund. Please note that it is your responsibility to pay for the return postage costs no postage costs are refundable. We cannot assume responsibility for returned items that are lost in the post. Your statutory rights are not affected.

  • All goods will be inspected upon return
  • Goods can be tried on for sizing but not worn for activity – Please do not wear items next to the skin when trying on for hygiene reasons, shorts MUST be tried on with clean underwear
  • Goods must be returned with all original packaging intact and tags attached within 14 days of purchase. Goods returned with incomplete or damaged packaging or missing or unattached tags may be refused or subject to a restocking fee
  • In the unlikely event that an item is returned to us in an unsuitable condition, we may have to send it back to you
  • Goods returned as unused/unworn, that have clearly been worn or washed may be refused
  • Goods returned without a returns form fully completed could delay the process of your return/exchange
  • We cannot accept out-of-date or opened nutrition products

Bontrager 30 day InForm Guarantee

Bontrager offers a 30-day satisfaction guarantee on all Inform labeled Footwear, Clothing, and saddles to help you reach the ultimate fit.

  • Guarantee valid for in-store purchase only
  • You have 30 days from the date of purchase to return the items to the store
  • Make sure you return it with proof of purchase (receipt) and the original packaging (in good condition)
  • You will be given a credit towards a new Bontrager Product

CONTACT US

We are here to help! Please email us at enquiries@pedalworks.co.ukor call 01582 478070

Trek X-Caliber 9 Mountain Bike Information

Brand : Trek

Code : 297602020GRNVoltFade

Trek's X-Caliber 9 is the top-end model in the X-Caliber family.

It's a fully race-ready cross-country mountain bike built with parts designed to compete. A RockShox Judy Silver fork with remote lockout, a 1x12 Shimano XT/SLX drive train, and a wide-range cassette make it a great choice for fast singletrack riders who want a great bike that's ready to race straight out of the box.

Technical Information
  • Frame

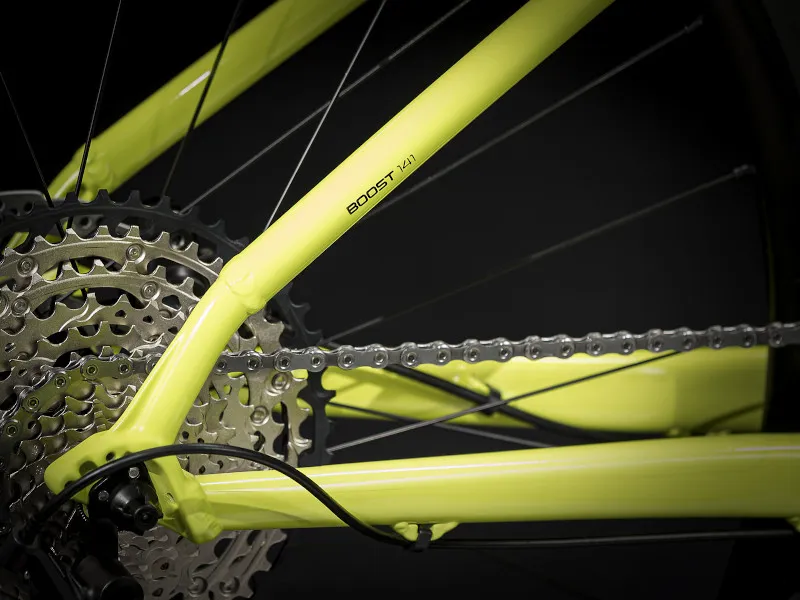

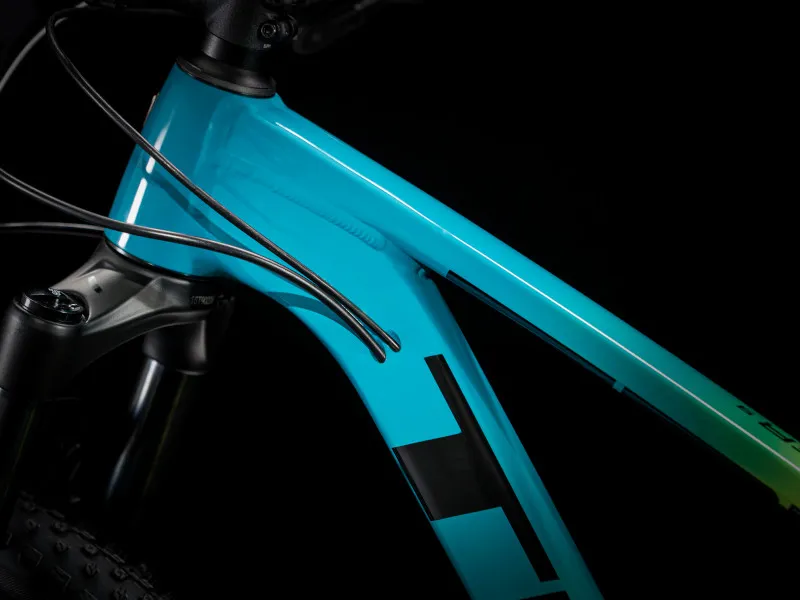

    Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR

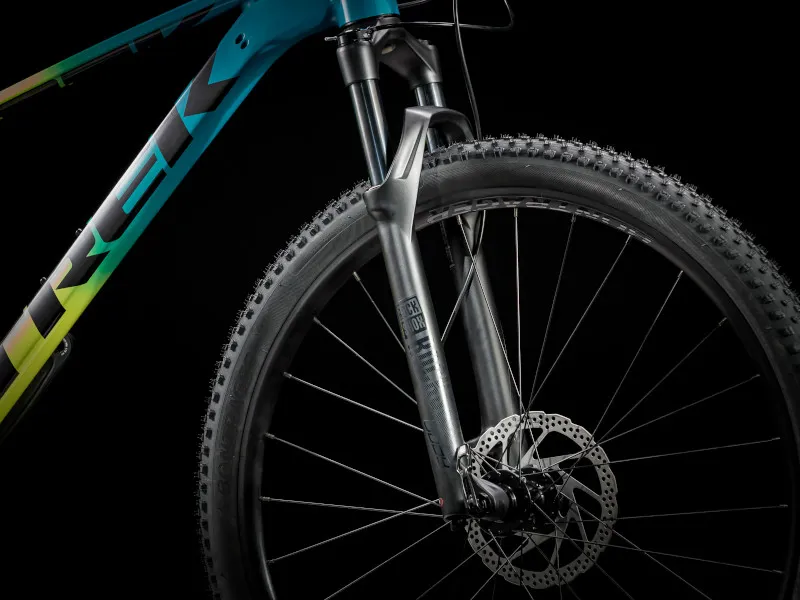

  • Fork
    Size: XS
    RockShox Judy Silver, Solo Air, TurnKey remote lockout, tapered steerer, Boost110, 15mm Maxle, 80mm travel

    Size: S
    RockShox Judy Silver, Solo Air, TurnKey remote lockout, tapered steerer, Boost110, 15mm Maxle, 100mm travel

    Size: M , ML , L , XL , XXL
    RockShox Judy Silver, Solo Air spring, TurnKey remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Lite, 100 mm travel
  • Front Hub
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub
    Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5 mm QR

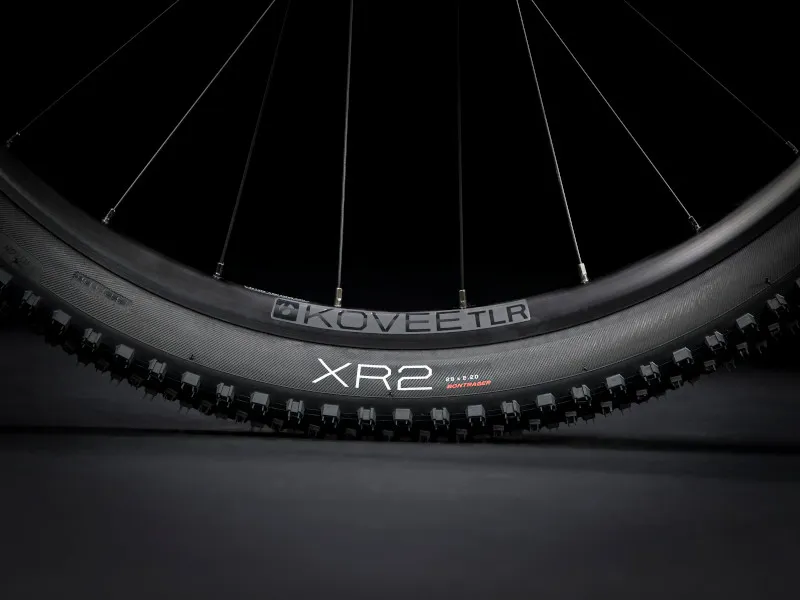

  • Rim
    Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23 mm width, Presta valve
  • Tire
    Size: XS , S
    Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.20"

    Size: M , ML , L , XL , XXL
    Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.20"
  • Shifter
    Shimano SLX M7100, 12-speed

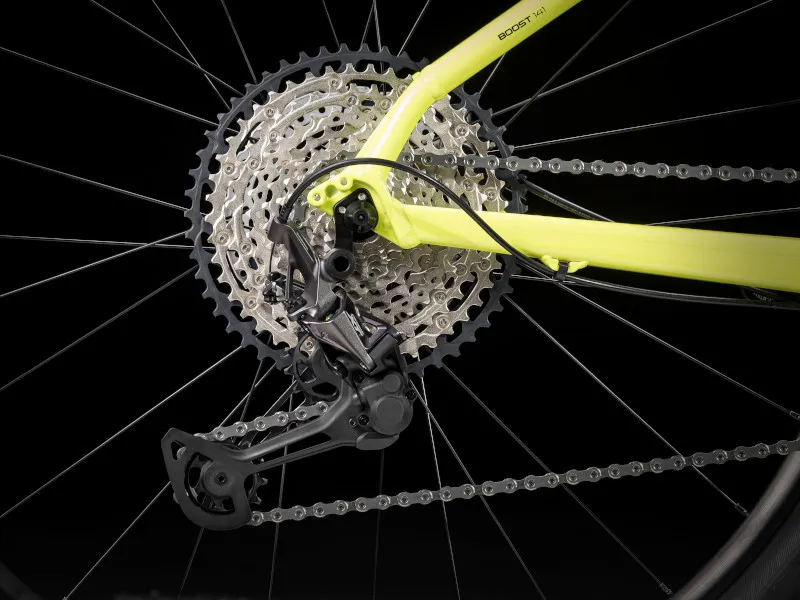

  • Rear Derailleur
    Shimano XT M8100, long cage, 51T max cog

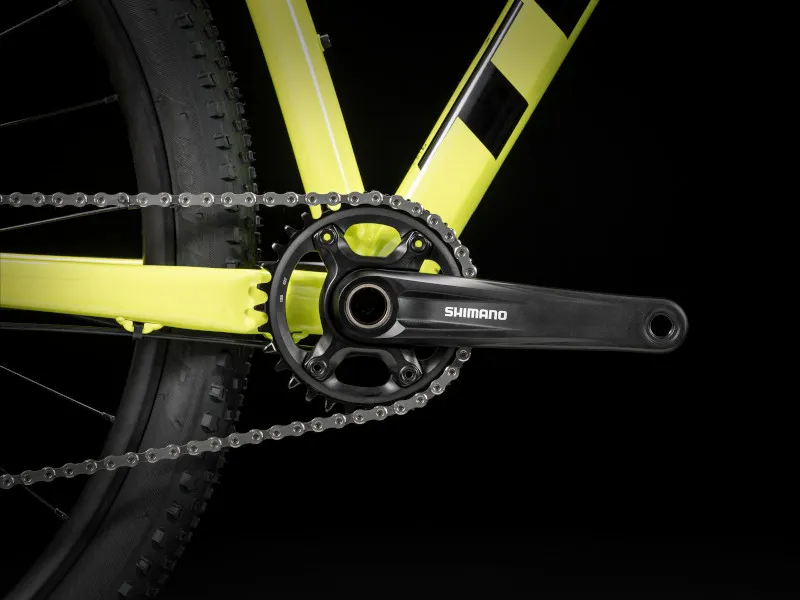

  • Crank
    Size: XS , S
    Shimano MT610, 30T steel ring, Boost, 170mm

    Size: M , ML , L , XL , XXL
    Shimano MT610, 30T steel ring, Boost, 175 mm
  • Bottom Bracket
    Shimano SM-BB52, 73 mm, threaded external bearing
  • Cassette
    Shimano SLX M7100, 10-51, 12-speed
  • Chain
    Shimano SLX M7100, 12-speed
  • Pedal
    VP-536 nylon platform
  • Saddle
    Bontrager Arvada, steel rails, 138 mm width
  • Seatpost
    Size: XS , S
    Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length

    Size: M
    Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length

    Size: ML , L , XL , XXL
    Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

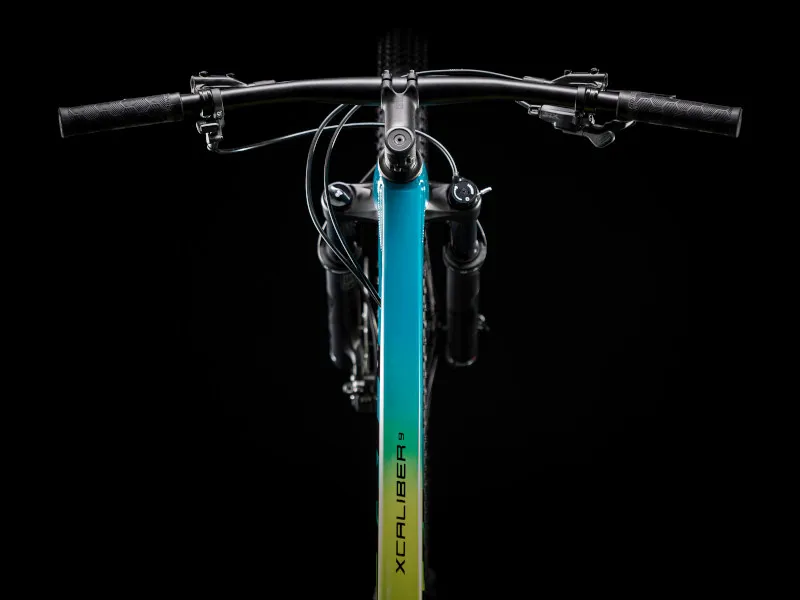

  • Handlebar
    Size: XS
    Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width

    Size: S , M , ML , L , XL , XXL
    Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
  • Grips
    Bontrager XR Trail Comp, nylon lock-on

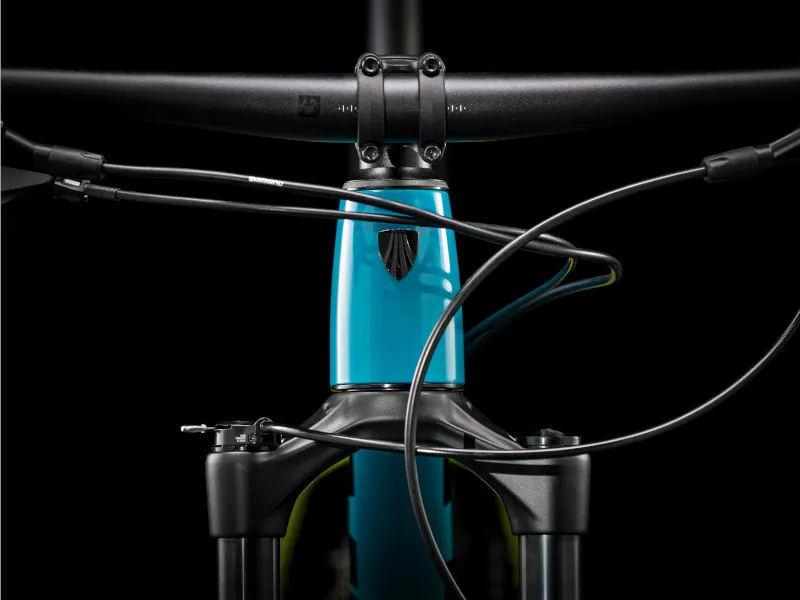

  • Stem
    Size: XS , S
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length

    Size: M
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length

    Size: ML , L
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length

    Size: XL , XXL
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Headset
    Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom

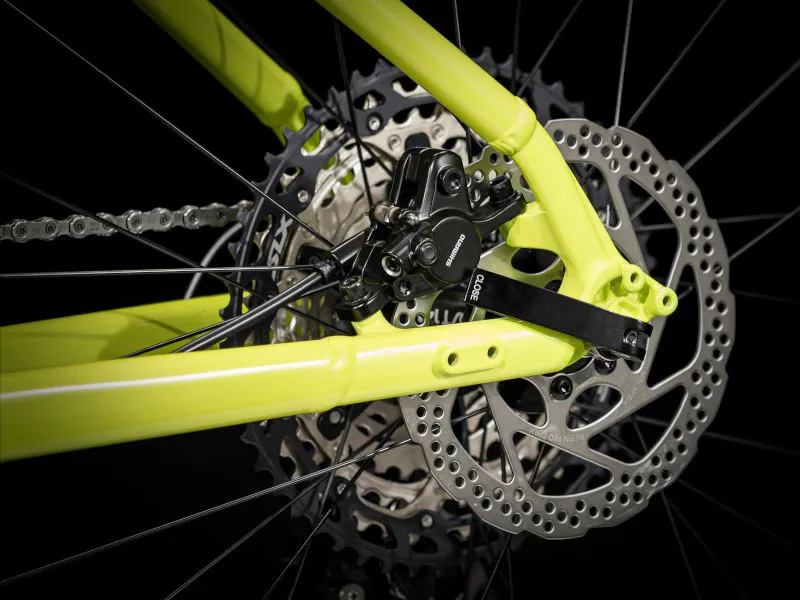

  • Brake
    Shimano hydraulic disc, MT401 lever, MT400 caliper
  • Weight
    M - 13.32 kg / 29.37 lbs (with tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
