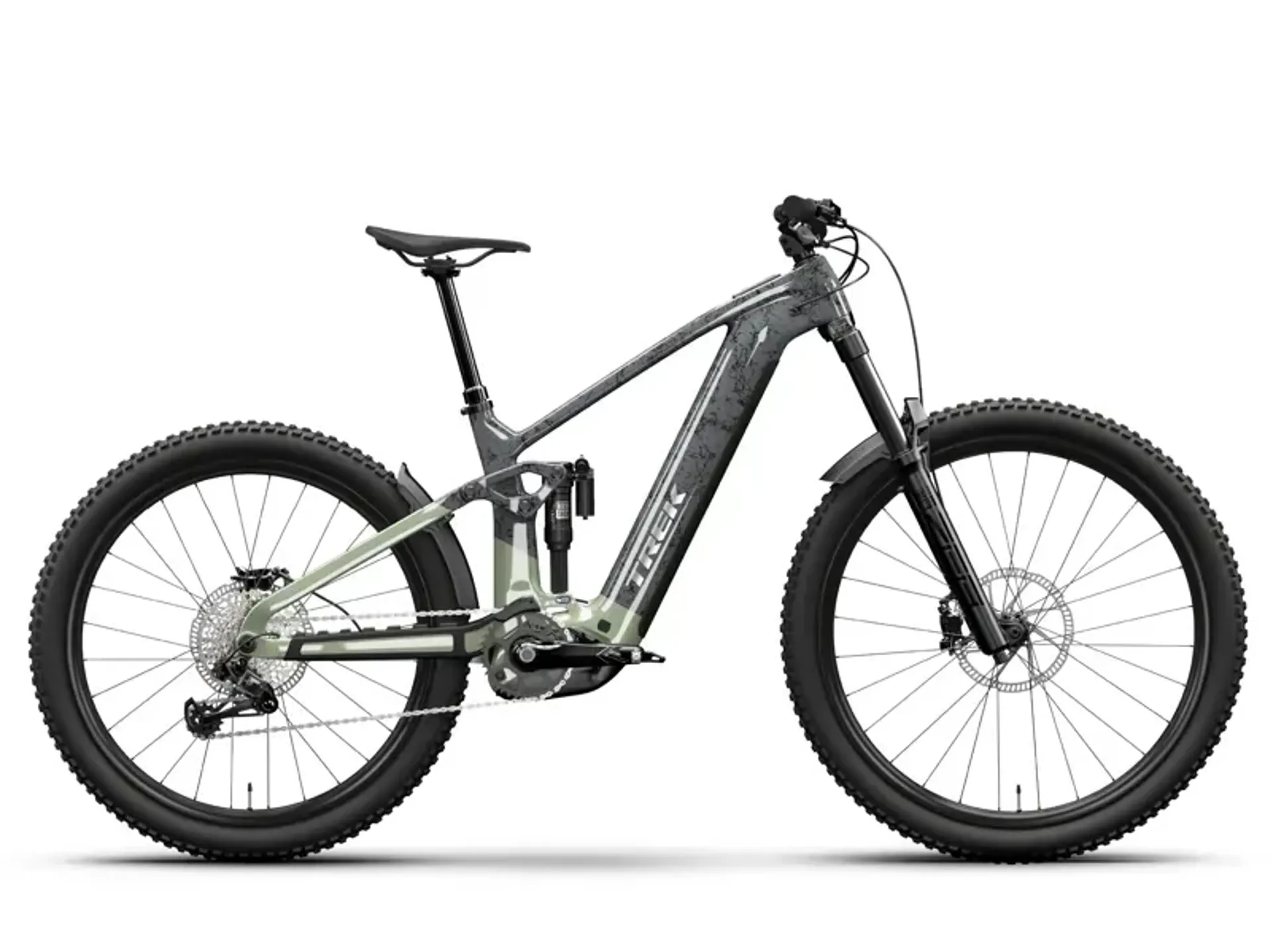

Trek Rail+ 9.9 XO AXS Carbon Electric Mountain Bike in Grey

Season:2025

Brand:Trek

Code:48472GRY

Rail 9.9 is Trek's best long-travel electric mountain bike.

You get an extra-beefy carbon frame, unbelievably smooth RockShox suspension, SRAM's best wireless electronic drivetrain, and a powerful Bosch smart system Performance Line CX motor with an extra-long range battery and the new Mini Remote. The new System Controller display sits almost flush with the top tube for a sleek look wherever you roll that stays out of the way when you're riding hard.

You want to spare no expense on your e-MTB experience. You want the most adjustability, smoothest performance, longest range, and most high-tech electric assist you can get. You love customization and want all the cool features of the Bosch smart system, and you want wireless electronic shifting.

An upgraded OCLV Mountain Carbon frame with longer reach and oversized head tube and seat tube for maximum strength. An extra-long-range 750Wh battery, ultra-adjustable RockShox ZEB Ultimate fork, RockShox Super Deluxe Ultimate Thru Shaft shock, and SRAM's wireless X0 AXS transmission. You get Bosch's smart system Performance Line CX with a new Mini Remote and Bluetooth® System Controller display that's integrated into the top tube, plus AirWiz pressure monitoring.

Rail 9.9 is all about top-shelf tech. The best enduro fork from RockShox, Bosch's biggest battery, the smooth shifting of X0 AXS, an updated frame, and AirWiz pressure monitoring, plus Bosch's latest tech with smart system.

Technical Information
  • Frame
    OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
  • Fork
    RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 1.8'' oversized tapered steerer, eMTB optimized crown, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
  • Shock
    RockShox Super Deluxe Thru Shaft, AirWiz, 230mm x 57.5mm
  • Max Compatible Fork Travel
    170mm (580mm axle-to-crown)
  • Wheel Front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
  • Wheel Rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29''
  • Skewer Rear
    Bontrager Switch thru axle, removable lever
  • Tire
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
  • Tire Part
    Bontrager TLR sealant, 6oz
  • Rim Strip
    Bontrager TLR
  • Max Tire Size
    Frame: 29x2.60", Fork: See manufacturer
  • Battery
    Bosch PowerTube 625Wh, smart system
  • Charger
    Bosch standard 4A, 110V, smart system
  • Controller
    Bosch System Controller BRC3100, smart system
  • Motor
    Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Shifter
    SRAM AXS POD Ultimate, paired with dropper
  • Rear Derailleur
    SRAM X0 Eagle AXS, T-Type
  • Crank
    SRAM X0 Eagle, 160mm length
  • Chainring
    SRAM XX T-Type, 34T, steel
  • Cassette
    SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
  • Chain
    SRAM X0 Eagle, T-Type, 12 speed
  • Pedal
    VP-536 nylon platform
  • Max Chainring Size
    1x: 34T
  • Saddle
    Bontrager Arvada, austenite rails, 138mm width
  • Seatpost
    RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length
  • Handlebar/Stem (Integrated)
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Brake
    SRAM Code Silver 4-piston hydraulic disc
  • Brake Rotor
    SRAM 6-bolt, 200mm
  • Rotor Size
    Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer
  • Weight
    M - 23.93 kg / 52.76 lbs (with TLR sealant, no tubes)
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Sizing Information

We know that when you're looking for a bike, you want one you can depend on. We also understand that getting the right size means you'll be more comfortable and more confident when tackling hills, roads, and trails. That's why we've made it our mission to bring you the best bikes at the best prices—and to make sure that your bike fits you perfectly. In order to do this, we've created this sizing guide so that all of our customers can find the perfect fit for their needs. Of course, we're also always here if you need any help or advice. This is a guide and is a good starting point to finding the right bike for you and often is spot-on! However, if you need help, advice, or customisation - Pedalworks is here to help!

Contact us on 01582 478070 or send us a question on our contact us form.

ROAD BIKES

Framesize47cm50cm52cm54cm56cm58cm60cm62cm
Height152-158cm158-163cm163-168cm168-174cm174-180cm180-185cm185-190cm190-195cm
Inseam71-75cm74-77cm76-79cm78-82cm81-85cm84-87cm86-90cm89-92cm


MOUNTAIN BIKES

FramesizeXSSMM/LLXL2XL
Height137-155cm153-166.5cm161-172cm165.5-179cm177-188cm186-196cm195-203cm
Inseam64-75cm72-77cm76-79cm77-82cm83-85cm87-92cm92-95cm
