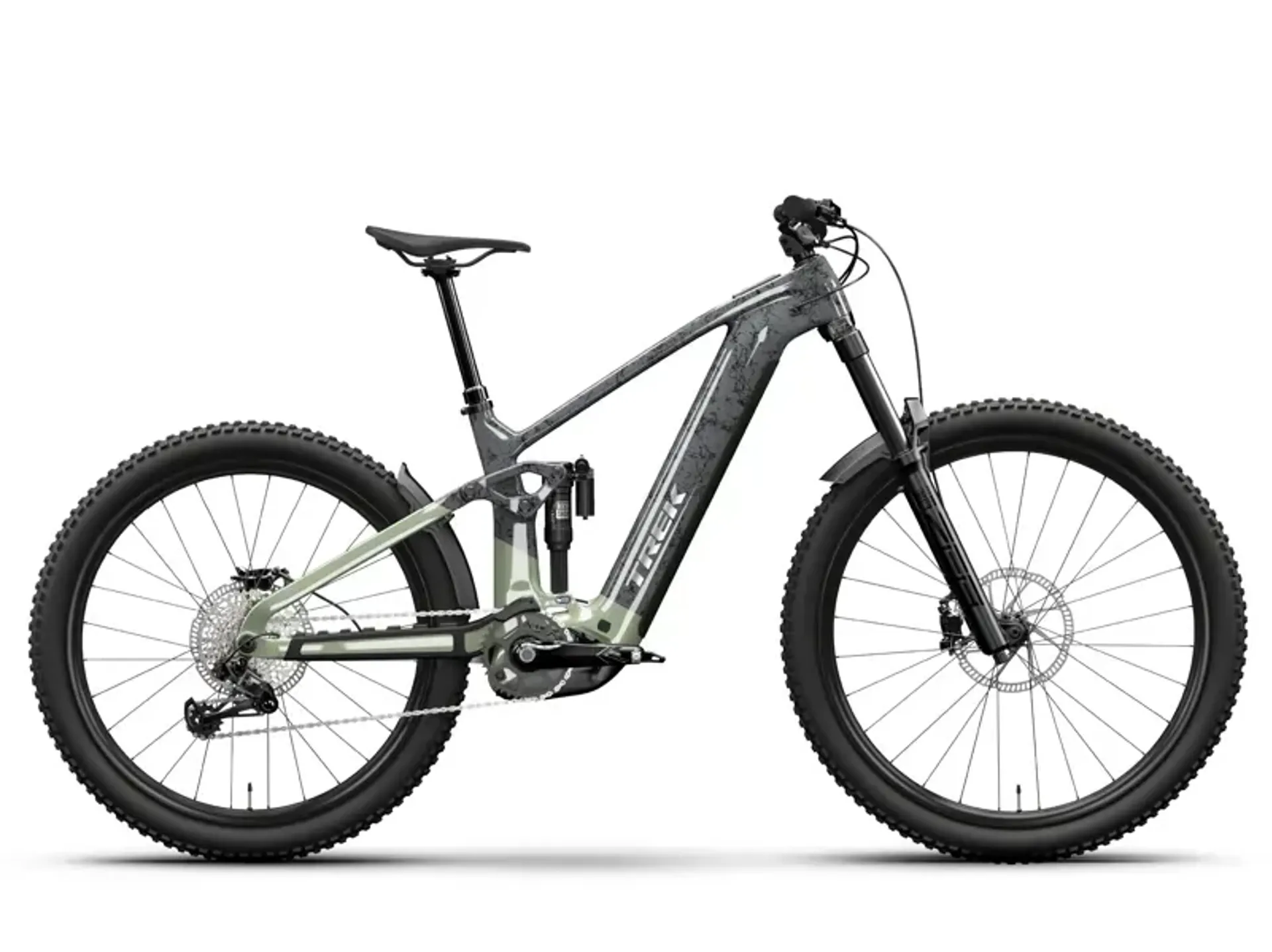

Trek Rail+ 9.8 XT Carbon Electric Mountain Bike in Grey

£7,750.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns

We want you to be 100% happy with your shopping experience and we will provide a FREE exchange or refund on any item (within the UK), if returned withing 14 days of delivery.

Please insert your proof of purchase into the package and return it to us. If you wish to exchange an item for any reason, the quickest and simplest way to do this is to place a new order for the items that you want and to return the other items for a refund. Please note that it is your responsibility to pay for the return postage costs no postage costs are refundable. We cannot assume responsibility for returned items that are lost in the post. Your statutory rights are not affected.

  • All goods will be inspected upon return
  • Goods can be tried on for sizing but not worn for activity – Please do not wear items next to the skin when trying on for hygiene reasons, shorts MUST be tried on with clean underwear
  • Goods must be returned with all original packaging intact and tags attached within 14 days of purchase. Goods returned with incomplete or damaged packaging or missing or unattached tags may be refused or subject to a restocking fee
  • In the unlikely event that an item is returned to us in an unsuitable condition, we may have to send it back to you
  • Goods returned as unused/unworn, that have clearly been worn or washed may be refused
  • Goods returned without a returns form fully completed could delay the process of your return/exchange
  • If you pay for a delivery service, we will not refund the delivery cost unless the item is faulty or the incorrect item has been sent to you
  • We cannot accept out-of-date or opened nutrition products
  • Bikes may be subject to a restocking fee.

Bontrager 30 day InForm Guarantee

Bontrager offers a 30-day satisfaction guarantee on all Inform labeled Footwear, Clothing, and saddles to help you reach the ultimate fit.

  • Guarantee valid for in-store purchase only
  • You have 30 days from the date of purchase to return the items to the store
  • Make sure you return it with proof of purchase (receipt) and the original packaging (in good condition)
  • You will be given a credit towards a new Bontrager Product

CONTACT US

We are here to help! Please email us at enquiries@pedalworks.co.ukor call 01582 478070

Trek Rail+ 9.8 XT Carbon Electric Mountain Bike in Grey

Season:2025

Brand:Trek

Code:48452GRY

The Rail 9.8 is a long-travel carbon electric mountain bike that rips just as hard as our beefiest trail rigs and powers you straight back up the mountain.

It features amazing upgrades to the suspension, drive train and brakes for exceptional performance on the gnarliest runs.


Technical Information
  • Frame
    OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Fork
    RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Shock
    RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 mm x 57.5 mm
  • Max Compatible Fork Travel
    170mm (580mm axle-to-crown)
  • Wheel Front
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Wheel Rear
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29"
  • Hub Front
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub Rear
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Skewer Rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Line Comp 30, Tubeless-Ready
  • Spokes
    14 g stainless steel, black
  • Tyre
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29 x 2.60"
  • Tyre Part
    Bontrager TLR sealant, 180 ml/6 oz
  • Sealant
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim Strip
    Bontrager TLR
  • Max Tyre Size
    Frame: 29x2.60", Fork: See manufacturer
  • Battery
    Bosch PowerTube 625 Wh
  • Charger
    Bosch standard 4A, 220-240 V
  • Computer
    Bosch Kiox with Anti-theft solution
  • Motor
    Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h max assist
  • Shifter
    Shimano XT M8100, 12-speed
  • Rear Derailleur
    Shimano XT M8100, long cage
  • Crank
    E*thirteen E*spec Plus, 165 mm length
  • Chainring
    E*thirteen, 34T, steel
  • Cassette
    Shimano XT M8100, 10-51, 12-speed
  • Chain
    Shimano XT M8100, 12-speed
  • Pedal
    VP-536 nylon platform
  • Max. Chainring Size
    1x: 34T
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost
    Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length
  • Handlebar
    Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Stem
    Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
  • Head Set
    Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    Shimano SLX M7120 4-piston hydraulic disc
  • Brake Rotor
    Shimano RT76, 6-bolt, 203 mm
  • Weight
    M - 22.34 kg / 49.25 lbs (with tubes)
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information

We know that when you're looking for a bike, you want one you can depend on. We also understand that getting the right size means you'll be more comfortable and more confident when tackling hills, roads, and trails. That's why we've made it our mission to bring you the best bikes at the best prices—and to make sure that your bike fits you perfectly. In order to do this, we've created this sizing guide so that all of our customers can find the perfect fit for their needs. Of course, we're also always here if you need any help or advice. This is a guide and is a good starting point to finding the right bike for you and often is spot-on! However, if you need help, advice, or customisation - Pedalworks is here to help!

Contact us on 01582 478070 or send us a question on our contact us form.

ROAD BIKES

Framesize47cm50cm52cm54cm56cm58cm60cm62cm
Height152-158cm158-163cm163-168cm168-174cm174-180cm180-185cm185-190cm190-195cm
Inseam71-75cm74-77cm76-79cm78-82cm81-85cm84-87cm86-90cm89-92cm


MOUNTAIN BIKES

FramesizeXSSMM/LLXL2XL
Height137-155cm153-166.5cm161-172cm165.5-179cm177-188cm186-196cm195-203cm
Inseam64-75cm72-77cm76-79cm77-82cm83-85cm87-92cm92-95cm
