The Checkpoint+ SL 6 AXS is a carbon electric gravel bike ready to explore anywhere, featuring a smooth TQ HPR60 motor and SRAM GX AXS wireless drivetrain.
The Checkpoint+ SL 6 AXS is a carbon electric gravel bike ready to explore anywhere, featuring a smooth TQ HPR60 motor and SRAM GX AXS wireless drivetrain.
Trek

Trek Checkpoint+ SL 6 AXS Carbon E-Gravel Bike In Fjord Blue/Blue in Blue

£5,000.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns

We want you to be 100% happy with your shopping experience and we will provide a FREE exchange or refund on any item (within the UK), if returned withing 14 days of delivery.

Please insert your proof of purchase into the package and return it to us. If you wish to exchange an item for any reason, the quickest and simplest way to do this is to place a new order for the items that you want and to return the other items for a refund. Please note that it is your responsibility to pay for the return postage costs no postage costs are refundable. We cannot assume responsibility for returned items that are lost in the post. Your statutory rights are not affected.

  • All goods will be inspected upon return
  • Goods can be tried on for sizing but not worn for activity – Please do not wear items next to the skin when trying on for hygiene reasons, shorts MUST be tried on with clean underwear
  • Goods must be returned with all original packaging intact and tags attached within 14 days of purchase. Goods returned with incomplete or damaged packaging or missing or unattached tags may be refused or subject to a restocking fee
  • In the unlikely event that an item is returned to us in an unsuitable condition, we may have to send it back to you
  • Goods returned as unused/unworn, that have clearly been worn or washed may be refused
  • Goods returned without a returns form fully completed could delay the process of your return/exchange
  • If you pay for a delivery service, we will not refund the delivery cost unless the item is faulty or the incorrect item has been sent to you
  • We cannot accept out-of-date or opened nutrition products
  • Bikes may be subject to a restocking fee.

Bontrager 30 day InForm Guarantee

Bontrager offers a 30-day satisfaction guarantee on all Inform labeled Footwear, Clothing, and saddles to help you reach the ultimate fit.

  • Guarantee valid for in-store purchase only
  • You have 30 days from the date of purchase to return the items to the store
  • Make sure you return it with proof of purchase (receipt) and the original packaging (in good condition)
  • You will be given a credit towards a new Bontrager Product

CONTACT US

We are here to help! Please email us at enquiries@pedalworks.co.ukor call 01582 478070

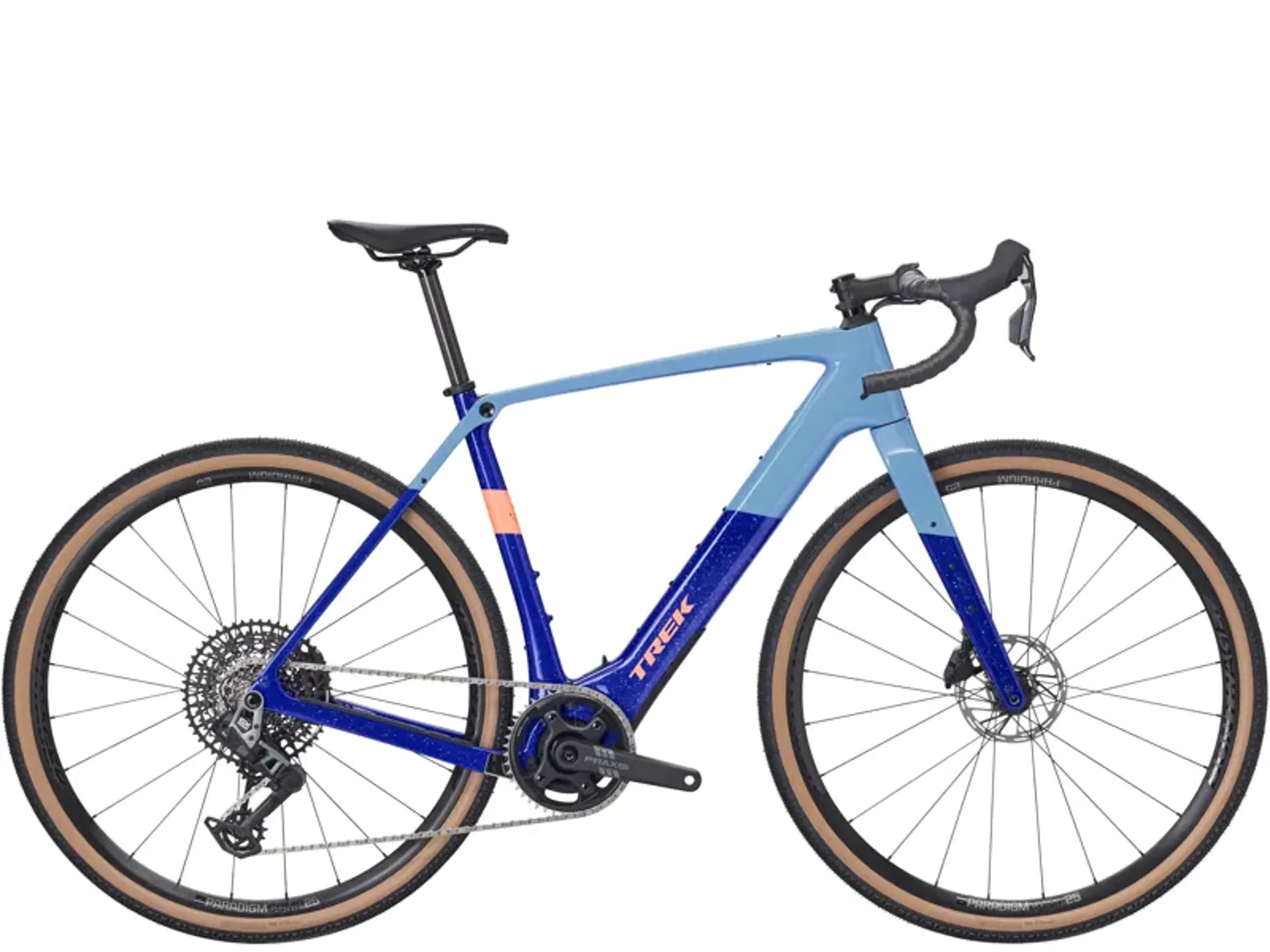

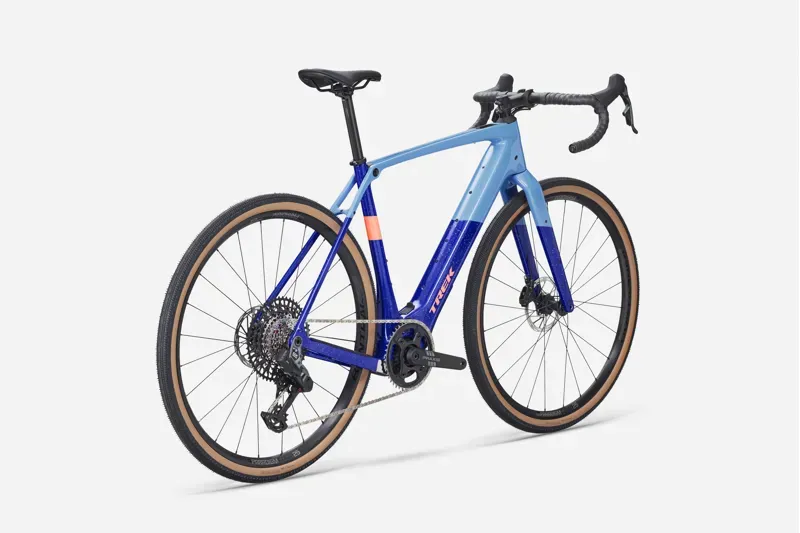

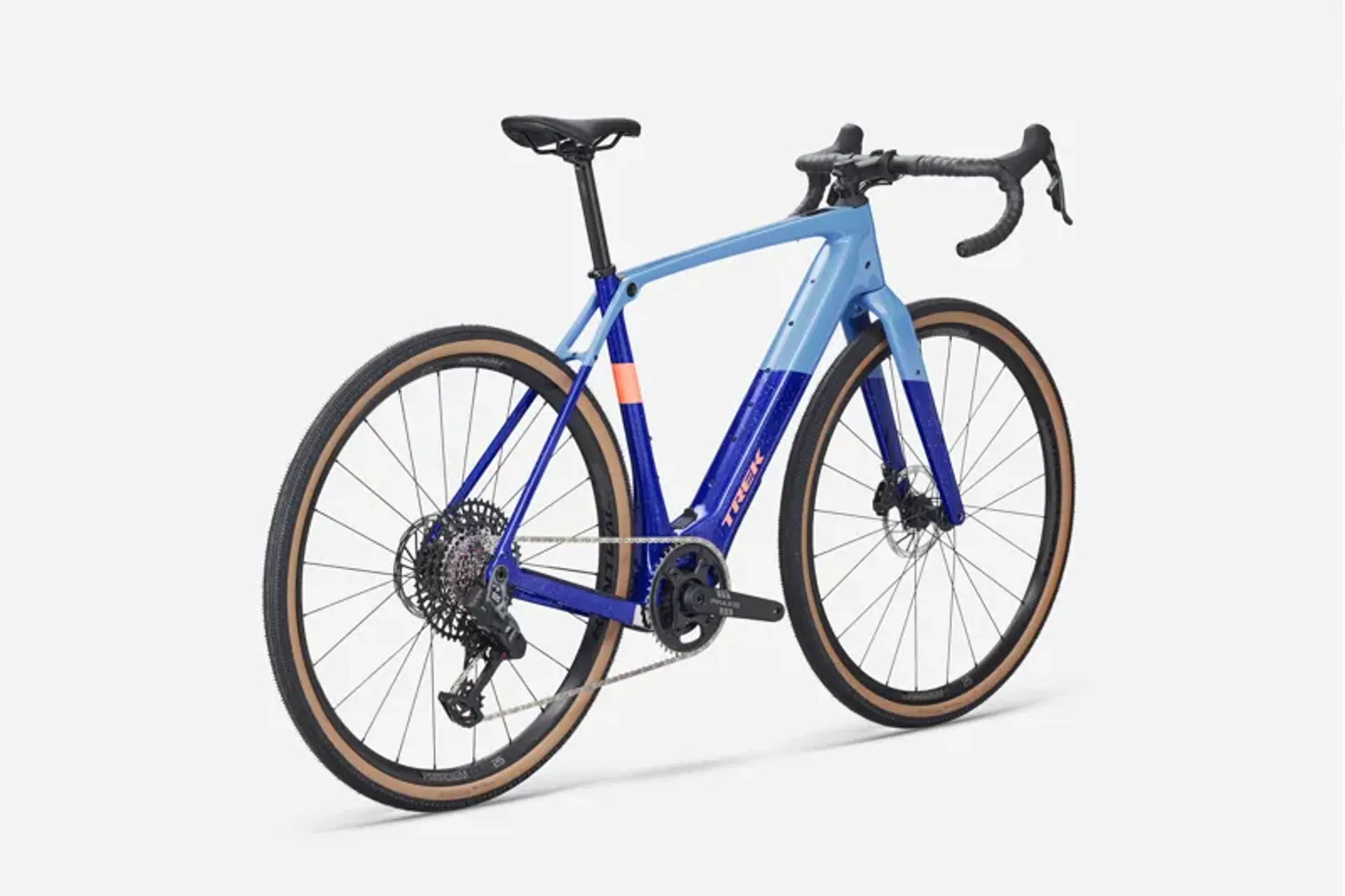

Trek Checkpoint+ SL 6 AXS Carbon E-Gravel Bike In Fjord Blue/Blue in Blue

Season:2026

Brand:Trek

Code:57441BLU

The Checkpoint+ SL 6 AXS is a carbon electric gravel bike designed for extending your adventures.

It is ready to explore anywhere, featuring a smooth and quiet TQ HPR60 motor, SRAM GX AXS wireless 12-speed drivetrain, durable alloy wheels, clearance for 50 mm tyres, and loads of mounts for gear.

The powerful and discreet e-system uses the industry-leading TQ HPR60 harmonic pin ring motor, which is super efficient with an amazing range-to-weight-to-speed ratio. It is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 25 kph (28 mph in the US) with 80 km (50 miles) of range (in eco mode). You can choose how much boost you get and when you get it with three assist modes.

Explore even further with an optional 160 Wh range extender that fits neatly in your bottle cage and gives you an extra 44% more range.

Road-smoothing IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger for longer.

The relaxed gravel endurance geometry puts you in a more relaxed, upright riding position to tackle even the most epic, all-day adventures.

Features:

  • Clearance for tyres up to 50 mm wide (as measured) lets you roll right over the big stuff.
  • Carry everything you need with mounts on the frame and fork for front and rear racks, mudguards, and adventure frame and triangle bags.
  • The Checkpoint+ was designed to fit extra hydration in addition to all your bags.
Technical Information
  • Frame
    500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle
  • Fork

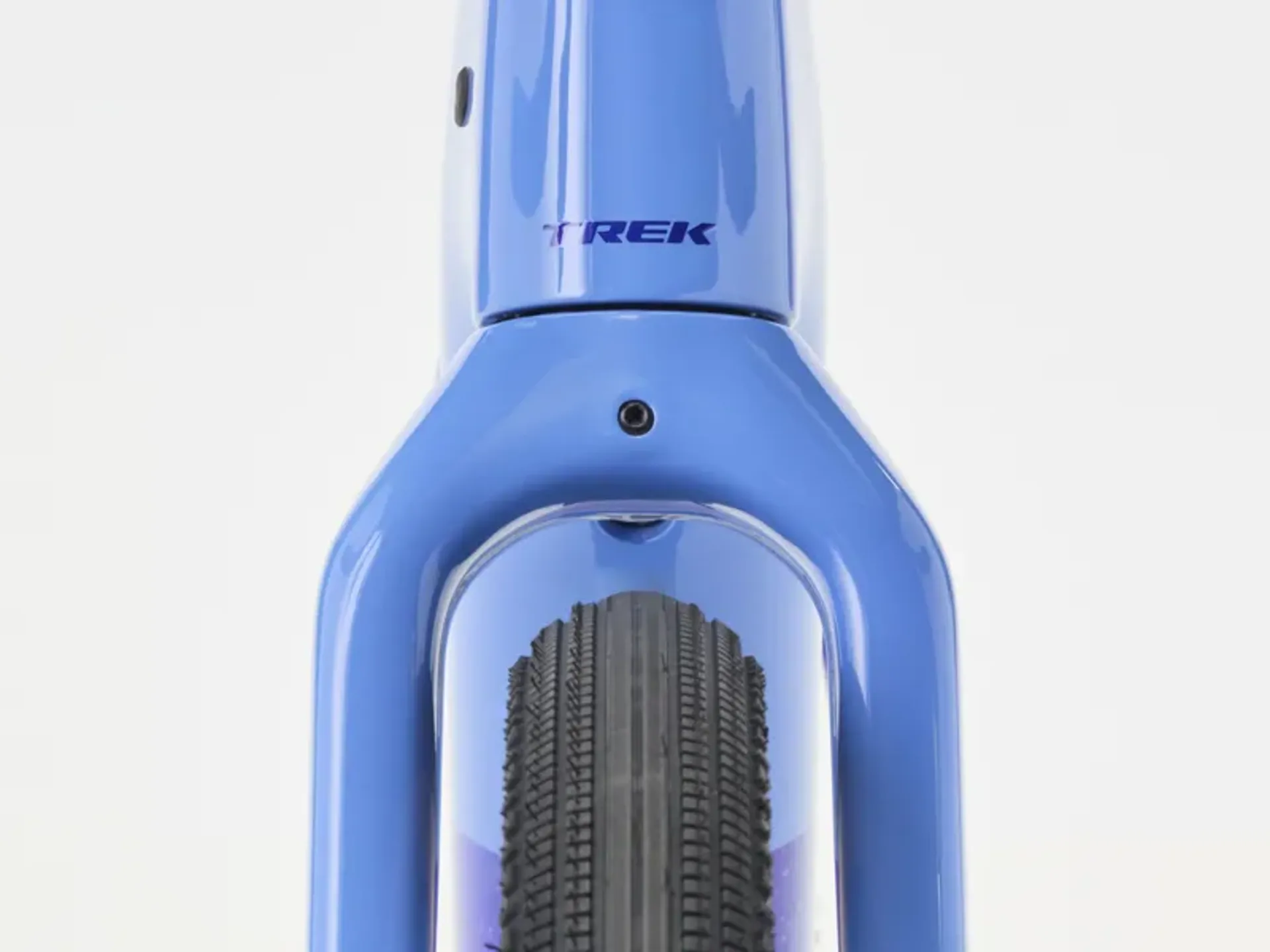

    Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
  • Weight
    ML - 13.76 kg / 30.34 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery
    TQ 360Wh
  • Charger
    TQ 4A charger
  • Computer
    TQ LED display with Bluetooth & ANT+ connectivity
  • Motor

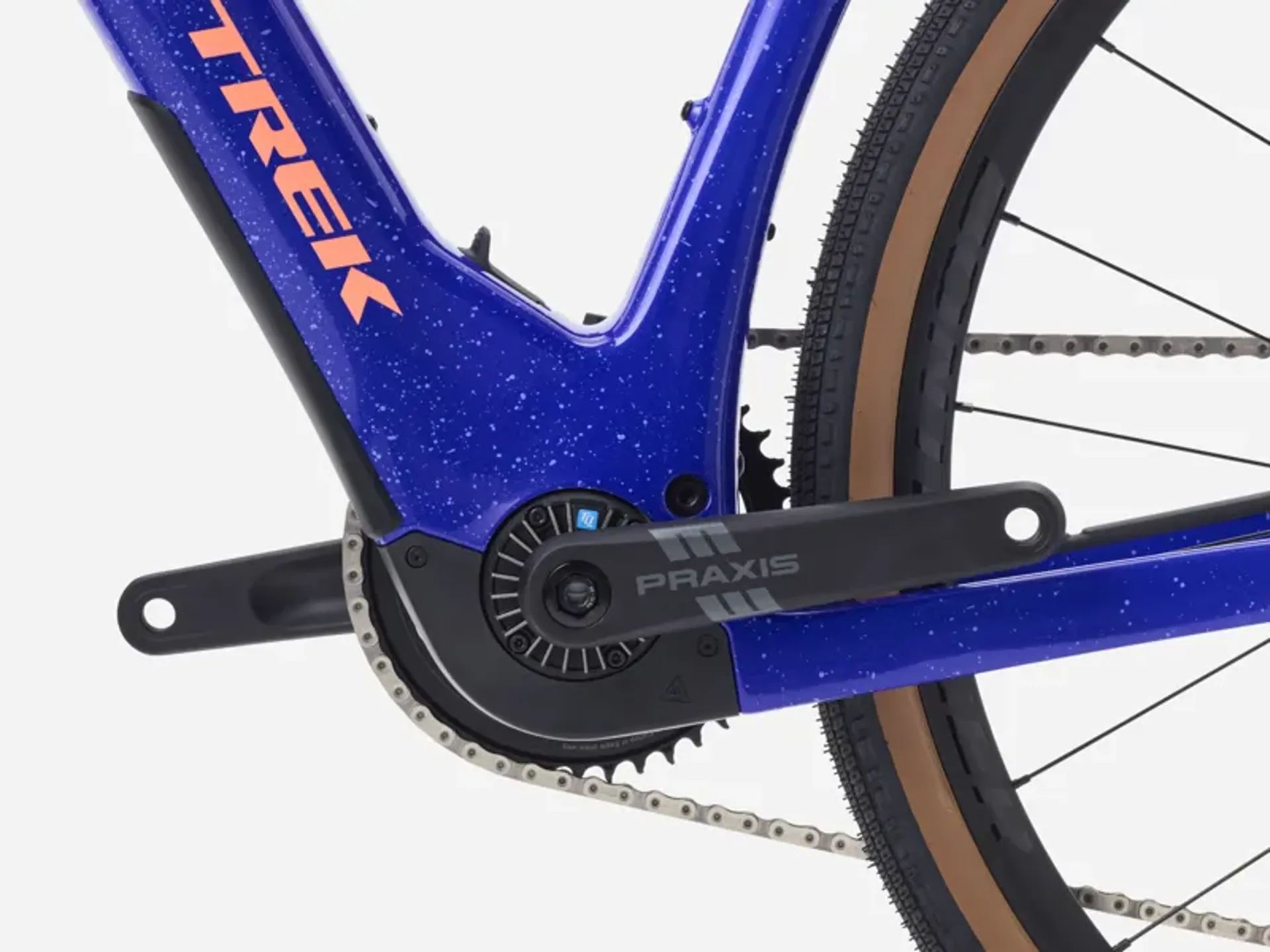

    TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
  • E-bike Classification
    Class 1
  • Shifter
    Size: XS, S, M, ML, L, XL SRAM Rival AXS, 13-speed; Size: XS, S, M, ML, L, XL SRAM Rival AXS E1
  • Rear derailleur
    SRAM GX Eagle AXS, T-Type
  • Crank
    Size: XS, S Praxis Alloy, 165 mm length; Size: M, ML Praxis Alloy, 170 mm length; Size: L, XL Praxis Alloy, 172.5 mm length
  • Cassette
    SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
  • Chain
    SRAM GX Eagle, T-Type, 12-speed
  • Max. chainring size
    1x: 44T
  • Wheel front
    Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Wheel rear
    Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tyre
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Max tyre size
    50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

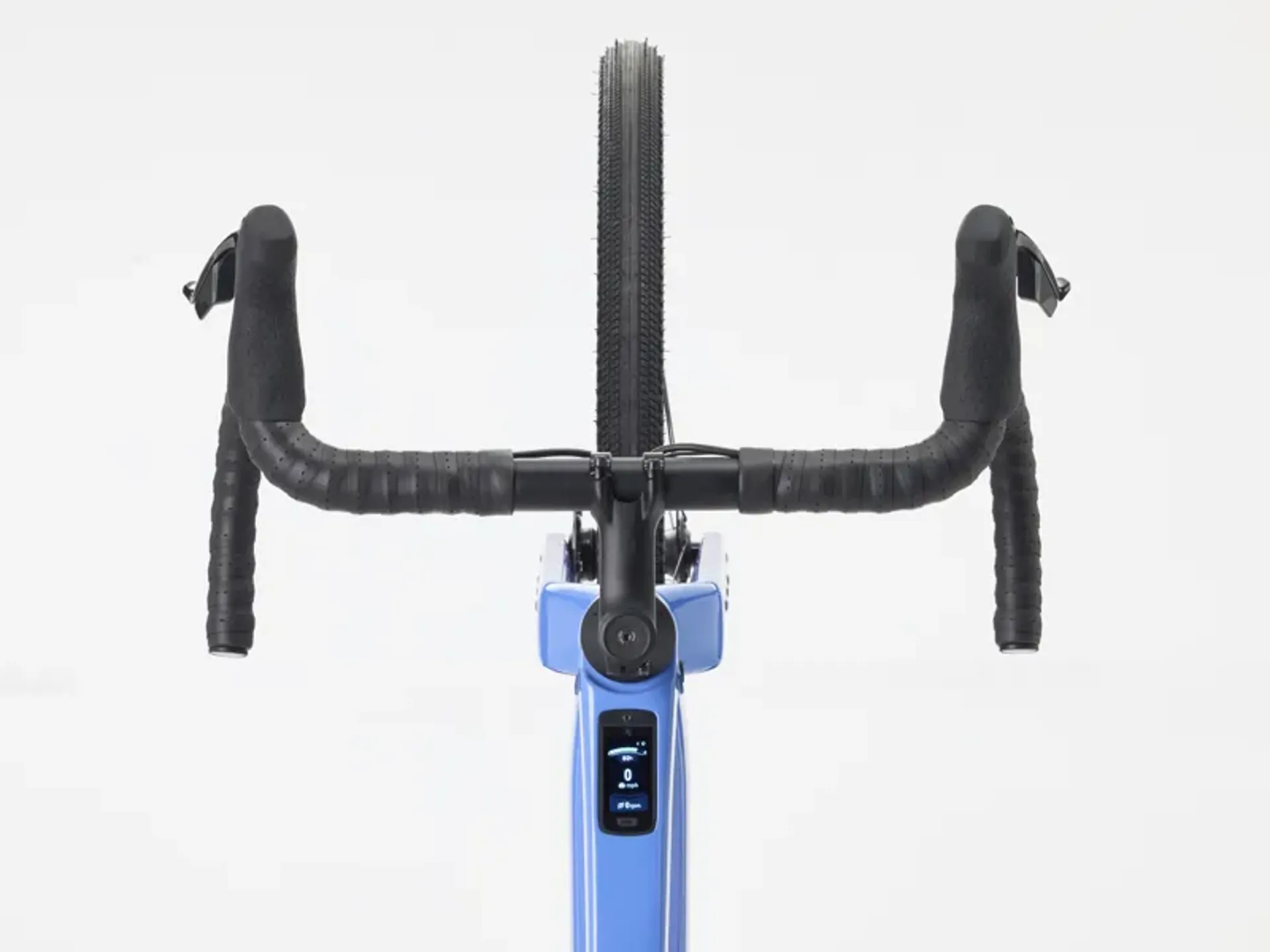

  • Handlebar
    Size: XS, S Bontrager Elite Gravel, alloy, 40 cm width; Size: M, ML Bontrager Elite Gravel, alloy, 42 cm width; Size: L Bontrager Elite Gravel, alloy, 44 cm width; Size: XL Bontrager Elite Gravel, alloy, 46 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: XS Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: S, M Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length; Size: ML, L Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length; Size: XL Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
  • Brake rotor
    SRAM Paceline, rounded, CentreLock, 160 mm
  • Rotor size
    Max brake rotor sizes: 180 mm front and rear
Sizing Information

We know that when you're looking for a bike, you want one you can depend on. We also understand that getting the right size means you'll be more comfortable and more confident when tackling hills, roads, and trails. That's why we've made it our mission to bring you the best bikes at the best prices—and to make sure that your bike fits you perfectly. In order to do this, we've created this sizing guide so that all of our customers can find the perfect fit for their needs. Of course, we're also always here if you need any help or advice. This is a guide and is a good starting point to finding the right bike for you and often is spot-on! However, if you need help, advice, or customisation - Pedalworks is here to help!

Contact us on 01582 478070 or send us a question on our contact us form.

ROAD BIKES

Framesize47cm50cm52cm54cm56cm58cm60cm62cm
Height152-158cm158-163cm163-168cm168-174cm174-180cm180-185cm185-190cm190-195cm
Inseam71-75cm74-77cm76-79cm78-82cm81-85cm84-87cm86-90cm89-92cm


MOUNTAIN BIKES

FramesizeXSSMM/LLXL2XL
Height137-155cm153-166.5cm161-172cm165.5-179cm177-188cm186-196cm195-203cm
Inseam64-75cm72-77cm76-79cm77-82cm83-85cm87-92cm92-95cm
